uv high speed inkjet printer directly sale for film
1. Arojet inkjet printer for packaging is manufactured by adopting advanced technology and production equipment.
2. Our high speed inkjet printer have advantages of high quality and low cost for maintenance.
3. Our inkjet printer for packaging and automatic inkjet printer throughout all stages of production enable us to grantee customer satisfaction in a total.
Product Oerview

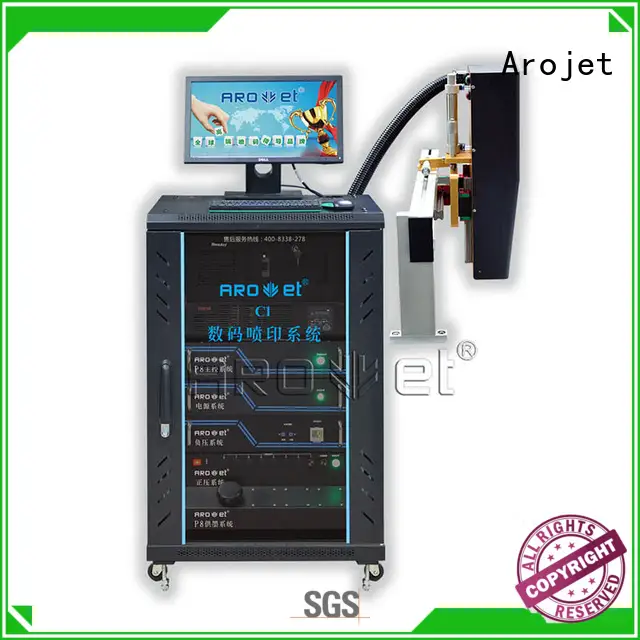

C1 sheet-fed digital variable data inkjet printing machine is suitable for different materials with different shapes. For example, it can print variable data barcode, two-dimension code, serial No., date code, etc. on bottle cap, glass cup, ceramics, metal and so on. The printing speed is 0-45m/min with physical resolution up to 360dpi.
The resolution can reach 200dpi at the speed of 50m/min. The inkjet printing grade can reach A level and the scanning qualified rate up to 99.9%. The minimum character to be printed is 1mm. The minimum size of two-dimension code printed is 5*5mm.
Sheet-fed featured C1 model can be used for roll to roll printing too when the printing speed is not required too high. It is widely applied to the industries of food, beverage, drug, electronics, hardware, etc.， provides enterprises with reliable-quality and suitable-price inkjet printing solutions.
Product Features
◈ Single sheet or roll to roll feeding platform
◈ Industrial piezoelectric printhead with high precision.
◈ UV-LED curing with high quality.
◈ Eco-friendly water cooling system.
◈ Wide range of printed media material.
◈ Large applications of inkjet coding and marking.
Product Specifications
Model: | C1 | Printing software: | MagicData variable data-editing software |
Print head type: | Industrial piezoelectric print head (KONICA) | SDK: | Provide interface to support second development |
Print head life: | 100 billion actuations per print head | Ink control: | Negative pressure for ink control, positive pressure for nozzle cleaning |
Print head material: | Stainless steel, Nickel alloys & Epoxy adhesive | Ink type: | High-quality Eco-friendly UV ink |
Print head width: | 36mm (single print head) | Ink color | Single color |
Nozzle quantity: | 512 pcs (single print head) | Curing type: | UV-LED curing |
Nozzle rows: | 2 rows | Printing speed: | 0-45m/min. (Affected by material, resolution, environment, platform etc. factors) |
Printing modules: | 8 groups | Lengthways printing precision: | 360dpi |
Max. width of printing: | 288mm | Crosswise printing precision: | 200dpi-1200dpi adjustable |
Distance from print head to material: | 0.5mm-2mm | Weight: | 270KG |
Material feeding way: | Single piece, roll to roll | Size: | 1.39m*0.83m*1.50m (print head case+curing case) |
Power supply: | AC 100V-240V, 50Hz-60Hz | Working temperature: | 5°C-40°C |
Interface type: | USB 2.0 | Environment humidity: | 20%-65% RH |
Product Videos
Product Applications
◇ Sheet feeding platform
◇ Polishing & laminating equipment
◇ Bottle cap machine
◇ Paging machine
◇ Labeling machine
◇ Packaging industry for inkjet printing of One-dimensional code, two-dimensional code, identification code, etc.
◇ Paper, plastic, card, board
◇ Tinplate, glass, ceramics
◇ Food, beverage and wine
◇ Medicine, drug and health care product
◇ Hardware, electronics, daily chemicals, building materials
Print Head
C1 model adopts KONICA all-steel piezoelectric printhead, with compact design and high precision. It can offer a range of solutions to various customer applications.
※ Shear mode, piezoelectric DOD printhead
※ 512 nozzles, 360dpi high resolution
※ Compatible with UV ink with good printing effect
※ Easy to operation with negative pressure ink control
Printing Software
C1 model uses AROJET self-designed MagicData software, which is specially developed for monochrome and multi-color variable data printing (VDP), supporting many types of object to be printed, such as texts, dates, times, graphics, logos, serial numbers, QR codes, barcodes, MICR fonts and photo images.
MagicData software has a friendly interface, easy to understand and easy to operate. Its workflow of editing, modifying, typesetting, integrating, splitting as well as input and output is brief and streamlined. It provides versatile choices to your inkjet printing solution.
Printing Ink
UV ink is a kind of economical, efficient and green eco-friendly ink, which has covered all printing industries. C1 model adopts professional UU-8008-1 type UV ink for inkjet printing. It features fast drying, vivid image and good printing quality as well as below unique characteristics.
※ Inkjet printability
※ Anti-scratch, friction resistance and anti-corrosive
※ Hazardous substance content conforms to RoHS standard.
