Model Number:
X6
MOQ:
1 Set
Payment:
L/C,T/T
Place of Origin:
Guangdong,China
Delivery Time:
Delivery within one month after receipt of deposit
Shipment:
Transportation by sea
Inquiry
Company Advantages
1. The quality of Arojet is inspected at each step of the production process. The quality inspection includes IQC, IPQC, OQC and QA report for finished rubber parts. The product is the fruit of continuous innovation and improvement
2. The product has great economic benefits and huge market potential, and has been widely used at home and abroad. The product can greatly reduce ink loss
3. The inspection of the product is paid 100% attention. From the materials to the finished products, each step of inspection is strictly conducted and followed. The product is of a firm and unbreakable structure
4. The product is selling well in the global market and is expected to be widely used in the future. It has gained wide acceptance and recognition from abroad
5. The product has the characteristics of long service life, excellent performance and stable performance. It is highly automatic and requires little manpower

Product Oerview

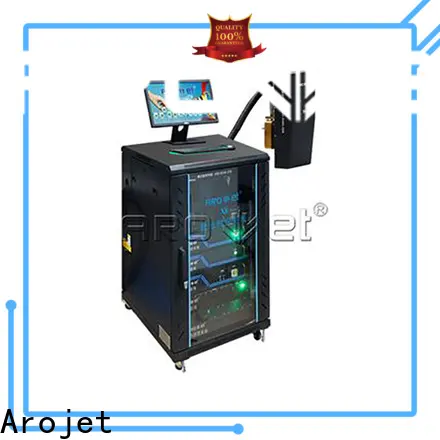

AROJET X6 high-speed variable data UV digital printing machine, is suitable for roll to roll printing and printing of flexible packaging. Its nozzle frequency is 50KHZ with printing speed up to 300m/min. The printing qualified rate can be up to 99.9% with high definition and high precision.

The patented-designed printing data algorithm improves the nozzle efficiency. The ink data optimization algorithm can reduce the ink loss, save production costs. Precise and seamless printing stitching makes printing effect more perfect. Integrated board and modular structure designs make modules expanding more convenient and maintenance simpler.

cost-effective industrial uv printer sp9600 factory for promotion 11

Highlighting speed and highlighting quality, X6 brings more efficient and quality production for customers.

  • Environmental-friendly

  • Wide compatibility

cost-effective industrial uv printer sp9600 factory for promotion 12

Product Features

  • ◈  High-speed printing with printing speed up to 300m/min.

  • ◈  Keeping printing blackness.

  • ◈  Resolution:600x300dpi,speed:300m/min.

  • ◈  Resolution:600x400dpi,speed:240m/min.

  • ◈  Resolution:600x600dpi,speed:200m/min.

  • ◈  Resolution:600x800dpi,speed:160m/min.

  • ◈  Resolution:600x1200dpi,speed:100m/min.

  • ◈  The nozzle has high utilization rate and low ink loss.

  • ◈  High printing definition and precision, perfect printing effect

  • ◈  Gigabit network data transmission. Transmission efficiency is high and more stable.

  • ◈  High-intensity heating of UV-LED lamp makes the ink fast curing and drying.

  • ◈  Negative pressure for ink control and positive pressure for nozzle cleaning, make the ink jetting smoothly, the ink road unblock and easy to clean.

  • ◈  Integrated modular board and structure designs for convenient module expansion and simple maintenance.

cost-effective industrial uv printer sp9600 factory for promotion 13


Product Specifications

Model

X6

Printing software

MagicData variable data-editing software

Printhead type

Industrial piezoelectric printhead (RICOH)

SDK

Provide interface to support second development

Printhead life

100 billion actuations per printhead

Ink control

Negative pressure for ink control, positive pressure for nozzle cleaning

Printhead material

Stainless steel, Nickel alloys & Epoxy adhesive

Ink type

High-quality Eco-friendly UV ink

Printhead width

50mm (single printhead)

Ink color

Single colors

Nozzle rows

 4 rows

Curing type

UV-LED curing

Printing modules

8 groups

Printing speed

0-300m/min (Affected by material, resolution, environment, platform etc. factors)

Max. width of printing

400mm

Lengthways printing precision

600dpi

Distance from printhead to material

0.5mm-2mm

Crosswise printing precision

200dpi-1200dpi adjustable

Material feeding way

Single piece, roll to roll

Weight:

270KG

Power supply

AC 100V-240V, 50Hz-60Hz

Size

1.39m*0.83m*1.50m (printhead case+curing case)

Interface type

USB 3.0 or Gigabit LAN

Working temperature

5°C-40°C



Environment humidity

20%-65% RH

Product Videos



Product Applications

● Can be installed online in the platform as below:

High-speed full rotary label printing machine

Automatic inspection machine

High-speed slicing slitting machine

High-speed flexographic press

High-speed gravure press

Polishing and coating machine

Paging machine

cost-effective industrial uv printer sp9600 factory for promotion 14
●  Can be applied to a wide range of industries as below:

Film, flexible packaging

Label, plastic

QR code, barcode, drug regulatory code

Textile and clothing

Electronics and hardware

Food and beverage

Medicines and health products

cost-effective industrial uv printer sp9600 factory for promotion 15

Print Head

X6 high-speed industrial digital inkjet printer, is equipped with high-quality piezoelectric print head using Japan RICOH print head which has long service life. It has stable printing effect with high precision and high definition.

X6 features high-speed printing with printing speed up to 300m/min. At 600*600dpi high resolution the printing speed can reach 200m/min. It uses negative pressure for ink control which ensure the nozzle unblocked. The positive pressure cleaning makes the daily maintenance much easier.

X6 patent-designed print head has higher utilization rate and lower ink loss. It can satisfy customers for high-quality and high-efficiency production requirements.

cost-effective industrial uv printer sp9600 factory for promotion 16


Printing Software

AROJET patent-designed MagicData printing software is applied to model X6 high-speed single-color variable data inkjet printing. It supports a lot of content formats, such as variable data graphics BMP format, barcode, QR code text format (Chinese characters, English characters, numbers, special symbols), regulatory code, anti-counterfeit code, graphical text, etc. MagicData’s features include template management, layout design,parameter adjustment, data merging and splitting, output preview, record queries, template modification, etc.

MagicData software for X6 simplifies and streamlines a wide range of printing applications, such as label, flexible packaging, plastic, film, QR code, barcode, etc. It can satisfy different customers with different requirements.


cost-effective industrial uv printer sp9600 factory for promotion 17


Printing Ink

AROJET industrial inkjet printer uses several kinds of UV ink which feature solvent-free, fast drying, good glossy, water-resistant, solvent-resistant and good wear-resistance. UV ink has now become a more mature ink technology. Its pollution emissions are almost zero with no any harm to human health.

X6 uses single color UV ink, different materials use different ink to meet customer different requirements.

  • ※  UV ink does not block the mesh holes, suitable for fine products printing.

  • ※  UV ink is instant drying, highly improving the production efficiency.

  • ※  UV ink is non-poisonous and Eco-friendly.

cost-effective industrial uv printer sp9600 factory for promotion 18
cost-effective industrial uv printer sp9600 factory for promotion 19
cost-effective industrial uv printer sp9600 factory for promotion 20

Company Features
1. Guangdong AROJET Ink Jet Technology Co., Ltd. is good at producing high quality industrial uv printer with reasonable price. All testing reports are available for our high speed industrial inkjet printer .
2. Our large format inkjet printer production equipment possesses many innovative features created and designed by us.
3. inkjet industrial is assembled by our highly skilled professionals. Our company is driving sustainable change through advanced processes and product innovation. We lead the way in remanufacturing, finding new ways to reduce, reuse, recycle, and reclaim materials that otherwise go to waste.
