UV inkjet technology means less pre-treatment material and less post-print coating work required compared to other printing technologies, such as flexography, gravure, screen printing and water-based inkjet printing. C2 model brings you both cost-effective and practical inkjet printing solutions.
Arojet ultrahigh inkjet marking printer c1 for label
Model Number:
C2
MOQ:
1 Set
Payment:
L/C,T/T
Place of Origin:
Guangdong,China
Delivery Time:
Delivery within one month after receipt of deposit
Shipment:
Transportation by sea
Company Advantages
1. Arojet inkjet marking printer has passed the comprehensive performance test. They include durability tests, stability tests, precision tests, safety tests, etc. The power supply of the product is super strong
2. Guangdong AROJET Ink Jet Technology Co., Ltd. increased efficiency in team-work. It can run at a very high speed
3. The principle of inkjet marking printer of batch code printer is proposed for Guangdong AROJET Ink Jet Technology Co., Ltd. to select materials. The product implements an eco-friendly mechanism
![Arojet ultrahigh inkjet marking printer c1 for label 14]()
![Arojet ultrahigh inkjet marking printer c1 for label 15]()
![Arojet ultrahigh inkjet marking printer c1 for label 18]()
![Arojet ultrahigh inkjet marking printer c1 for label 19]()
![Arojet ultrahigh inkjet marking printer c1 for label 20]()
Company Features
1. The new technology has been applied to the production of inkjet marking printer .
2. We will, as always, take industrial inkjet coder as tenet, to cooperate with all friends and customers for a better future. Get info!
1. Arojet inkjet marking printer has passed the comprehensive performance test. They include durability tests, stability tests, precision tests, safety tests, etc. The power supply of the product is super strong
2. Guangdong AROJET Ink Jet Technology Co., Ltd. increased efficiency in team-work. It can run at a very high speed
3. The principle of inkjet marking printer of batch code printer is proposed for Guangdong AROJET Ink Jet Technology Co., Ltd. to select materials. The product implements an eco-friendly mechanism
Product Oerview

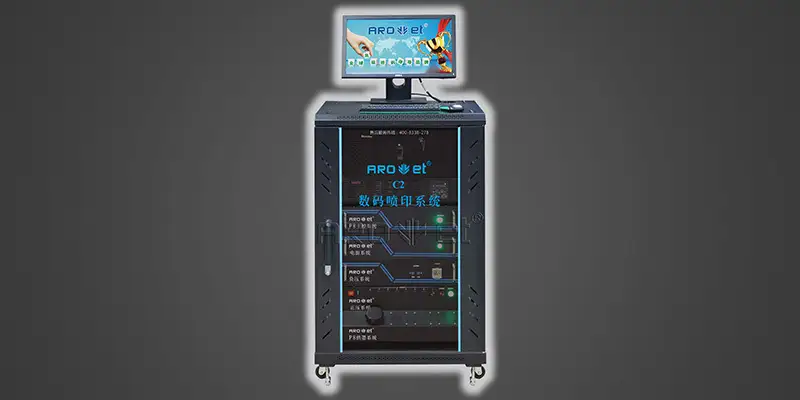

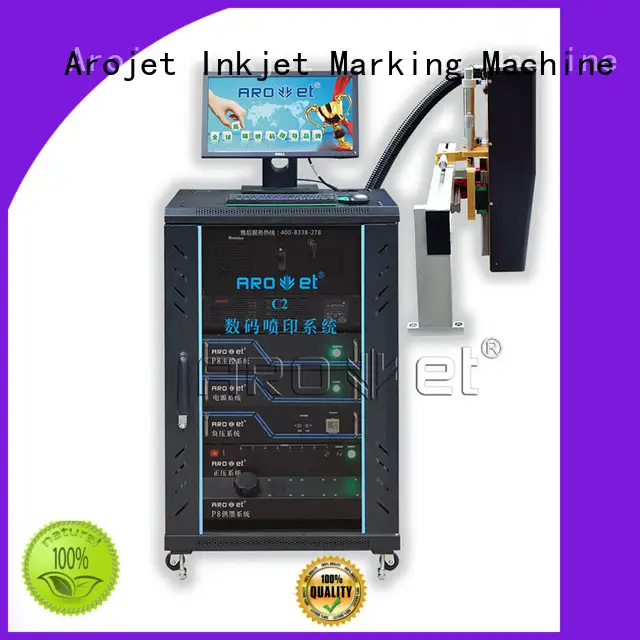

C2 is AROJET model of medium-speed roll or sheet variable data inkjet printing machine, with the printing speed up to 45m/min. 72mm of printhead width makes it suitable for wide-format printing, and a large versatile, cost-reasonable UV inkjet printing applications.
Product Features
◈ Medium-speed, wide-format.
◈ Industrial piezoelectric KONICA 1024 print head.
◈ Seamless stitching, perfect inkjet printing.
◈ Sheet-fed, roll to roll.
◈ Self-designed printing software, streamlined workflow.
◈ Easy operation and simple maintenance.
Product Specifications
Model: | C2 | Printing software: | MagicData variable data-editing software |
Print head type: | Industrial piezoelectric print head (KONICA) | SDK: | Provide interface to support second development |
Print head life: | 100 billion actuations per print head | Ink control: | Negative pressure for ink control, positive pressure for nozzle cleaning |
Print head material: | Stainless steel, Nickel alloys & Epoxy adhesive | Ink type: | High-quality Eco-friendly UV ink |
Print head width: | 72mm (single print head) | Ink color | Single color |
Nozzle quantity: | 1024 pcs (single print head) | Curing type: | UV-LED curing |
Nozzle rows: | 2 rows | Printing speed: | 0-45m/min. (Affected by material, resolution, environment, platform etc. factors) |
Printing modules: | 8 groups | Lengthways printing precision: | 360dpi |
Max. width of printing: | 576mm | Crosswise printing precision: | 200dpi-1200dpi adjustable |
Distance from print head to material: | 0.5mm-2mm | Weight: | 270KG |
Material feeding way: | Single piece, roll to roll | Size: | 1.39m*0.83m*1.50m (print head case+curing case) |
Power supply: | AC 100V-240V, 50Hz-60Hz | Working temperature: | 5°C-40°C |
Interface type: | USB 2.0 | Environment humidity: | 20%-65% RH |
Product Videos
Product Applications

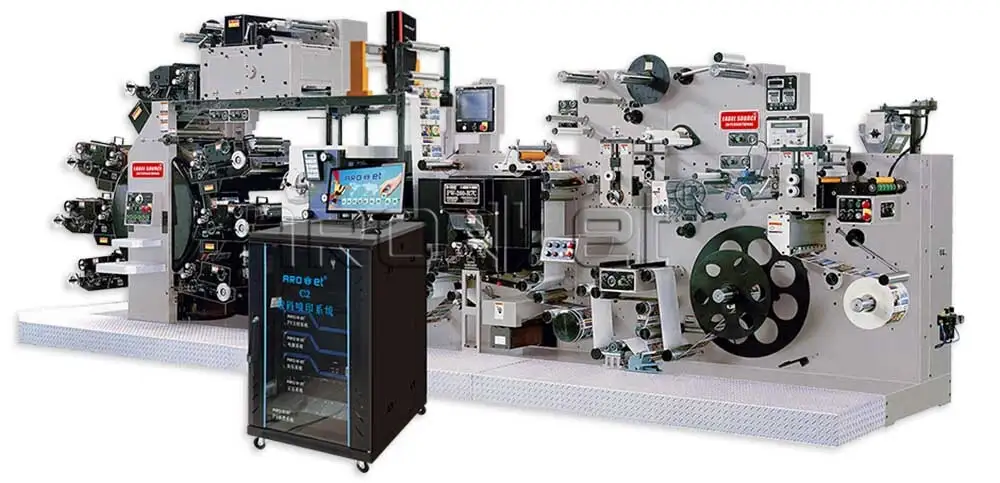

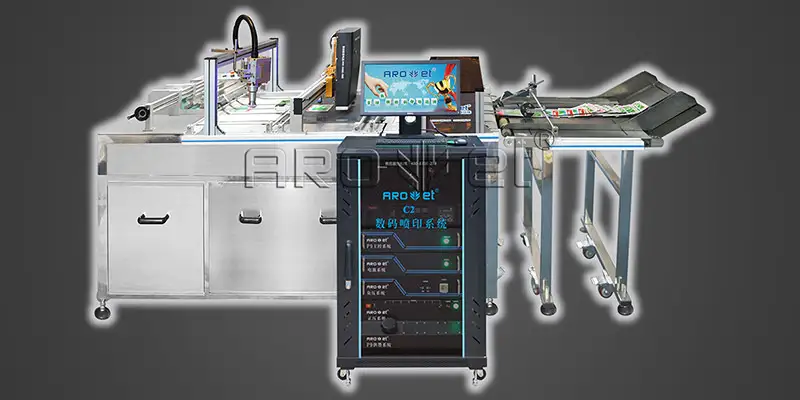

● Can be installed online in the platforms as below:

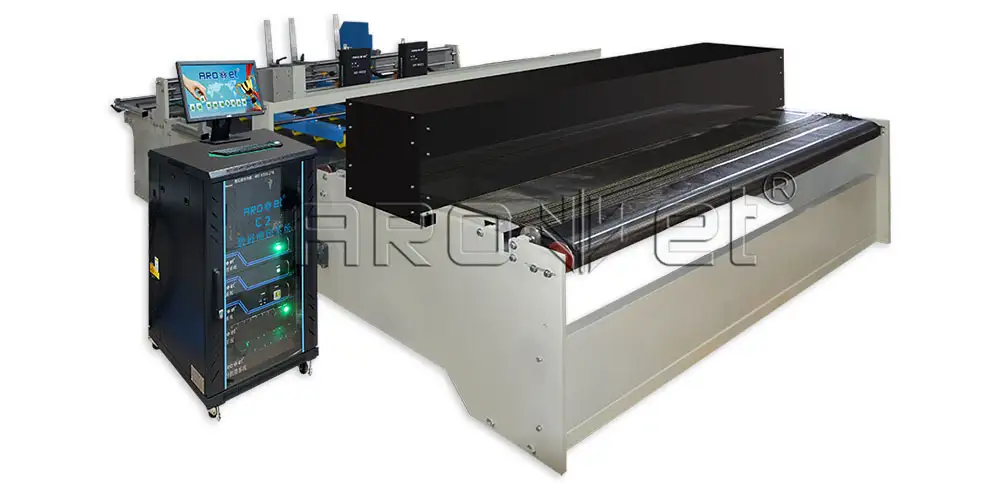

◇ Single sheet or roll to roll feeding platform
◇ Polishing & laminating equipment
◇ Bottle cap machine
◇ Paging machine
◇ Labeling machine

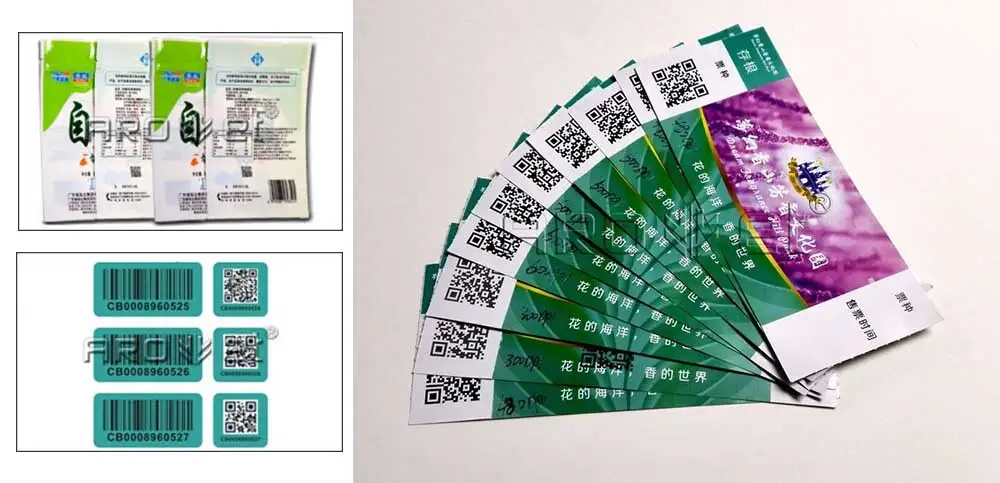

● Can be applied to a wide range of industries as below:
◇ Printing industry for One-dimensional code, two-dimensional Code, identification code, etc.
◇ Paper, film, card, board
◇ Printing iron, glass, ceramics
◇ Food, beverage and wine
◇ Medicine, drug and health care product
◇ Hardware, electronics, daily chemicals, building materials

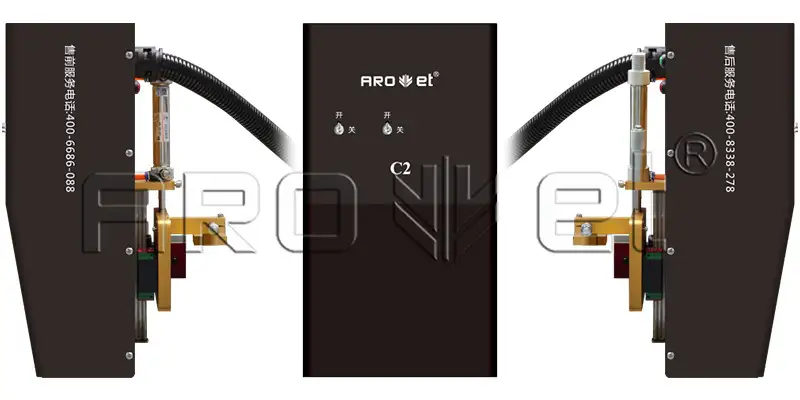

Print Head
C2 AROJET model uses KONICA piezoelectric 1024 print head. 72mm wide-format printing greatly increases the production efficiency. Fully enclosed water-proof and anti-aging print head has long service life. The print head can print up to 8 kinds of ink droplets with minimum 6pl and maximum 50pl, which has better control over the printed images, reproduce smooth color progressively and accurate match tones. High printing resolution can be achieved. When the printing speed is 30m/min. the resolution reaches 360*300dpi.
The print head for C2 model can be compact installed to improve the printing quality. With its distinctive features of medium speed and wide format, C2 model can satisfy customers from many industries with various data inkjet coding and marking demands.
Printing Software
The MagicData software used in C2 model has gained self-design copyright with strong functions. It can be tailor-made according to customer requirements to satisfy customer versatile demands.
※ Create main interface with intuitive preview
※ Support to load data source file
※ Combine and separate
※ Template management
※ Flexible layout design tools
Printing Ink
AROJET C2 model uses UV curing ink. UV curing is widely adopted in inkjet printing industry. UV curing ink has three major characteristics: energy-saving drying, extensive printing adaptability for printing materials, high-speed curing can shorten the follow-up processing time. The fourth characteristic of UV curing on inkjet printing is digital processing.
With the continuously improvement of the manufacturing and control technology of the inkjet printing, UV printing can meet diversified demands. In addition, UV ink does not include organic solvents, and is completely harmless to both human health and environment. UV ink is becoming more and more popular with many customers.
※ Inkjet printability
※ Anti-scratch, friction resistance and anti-corrosive

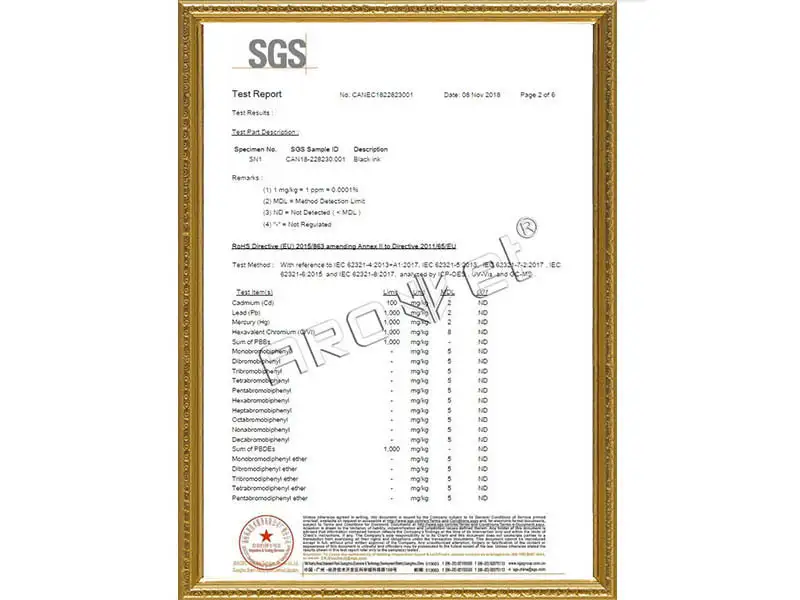

※ Hazardous substance content conforms to RoHS standard.
Company Features
1. The new technology has been applied to the production of inkjet marking printer .
2. We will, as always, take industrial inkjet coder as tenet, to cooperate with all friends and customers for a better future. Get info!
