Company Advantages1. The product is widely praised for its various special applications. The product can process items in a large quantity
2. Active listening is essential for Guangdong
AROJET Ink Jet Technology Co., Ltd.'s effective communication with customers. The product implements an eco-friendly mechanism
3. It can be easily mounted. It is designed with careful integration with adjacent elements such as other wall claddings, roofs, and base of wall details. The product is very safe to operate
4. The solar panel of the product is highly resistant to impact. Its surface, embedded with tempered glass, can protect the panel against exterior shock. The curing system of the product is of high performance
5. The product is corrosion resistance. The stainless steel parts have been electroplated with a layer of metal membrane to resist the chemical influence. The product is equipped with an accurate print head

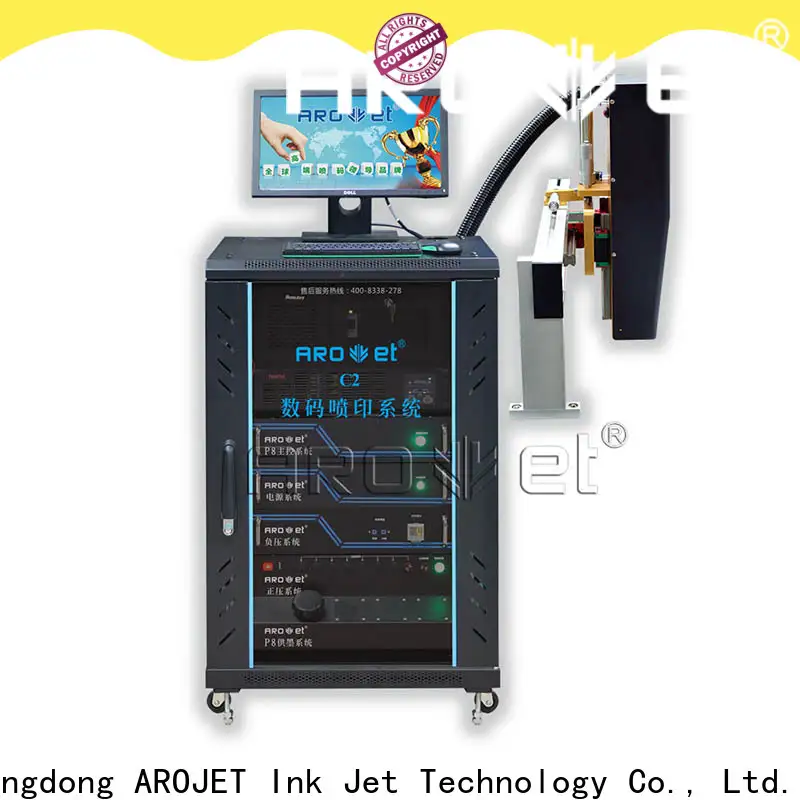

C2 is AROJET model of medium-speed roll or sheet variable data inkjet printing machine, with the printing speed up to 45m/min. 72mm of printhead width makes it suitable for wide-format printing, and a large versatile, cost-reasonable UV inkjet printing applications.
![Arojet industrial ink jet coder inquire now for promotion 11]()
UV inkjet technology means less pre-treatment material and less post-print coating work required compared to other printing technologies, such as flexography, gravure, screen printing and water-based inkjet printing. C2 model brings you both cost-effective and practical inkjet printing solutions.
◈ Medium-speed, wide-format.
◈ Industrial piezoelectric KONICA 1024 print head.
◈ Seamless stitching, perfect inkjet printing.
◈ Sheet-fed, roll to roll.
◈ Self-designed printing software, streamlined workflow.
◈ Easy operation and simple maintenance.
![Arojet industrial ink jet coder inquire now for promotion 13]()
Model: | C2 | Printing software: | MagicData variable data-editing software |
Print head type: | Industrial piezoelectric print head (KONICA) | SDK: | Provide interface to support second development |
Print head life: | 100 billion actuations per print head | Ink control: | Negative pressure for ink control, positive pressure for nozzle cleaning |
Print head material: | Stainless steel, Nickel alloys & Epoxy adhesive | Ink type: | High-quality Eco-friendly UV ink |
Print head width: | 72mm (single print head) | Ink color | Single color |
Nozzle quantity: | 1024 pcs (single print head) | Curing type: | UV-LED curing |
Nozzle rows: | 2 rows | Printing speed: | 0-45m/min. (Affected by material, resolution, environment, platform etc. factors) |
Printing modules: | 8 groups | Lengthways printing precision: | 360dpi |
Max. width of printing: | 576mm | Crosswise printing precision: | 200dpi-1200dpi adjustable |
Distance from print head to material: | 0.5mm-2mm | Weight: | 270KG |
Material feeding way: | Single piece, roll to roll | Size: | 1.39m*0.83m*1.50m (print head case+curing case) |
Power supply: | AC 100V-240V, 50Hz-60Hz | Working temperature: | 5°C-40°C |
Interface type: | USB 2.0 | Environment humidity: | 20%-65% RH |
● Can be installed online in the platforms as below:
◇ Single sheet or roll to roll feeding platform
◇ Polishing & laminating equipment
◇ Bottle cap machine
◇ Paging machine
◇ Labeling machine
● Can be applied to a wide range of industries as below:
◇ Printing industry for One-dimensional code, two-dimensional Code, identification code, etc.
◇ Paper, film, card, board
◇ Printing iron, glass, ceramics
◇ Food, beverage and wine
◇ Medicine, drug and health care product
◇ Hardware, electronics, daily chemicals, building materials
C2 AROJET model uses KONICA piezoelectric 1024 print head. 72mm wide-format printing greatly increases the production efficiency. Fully enclosed water-proof and anti-aging print head has long service life. The print head can print up to 8 kinds of ink droplets with minimum 6pl and maximum 50pl, which has better control over the printed images, reproduce smooth color progressively and accurate match tones. High printing resolution can be achieved. When the printing speed is 30m/min. the resolution reaches 360*300dpi.
The print head for C2 model can be compact installed to improve the printing quality. With its distinctive features of medium speed and wide format, C2 model can satisfy customers from many industries with various data inkjet coding and marking demands.
![Arojet industrial ink jet coder inquire now for promotion 16]()
The MagicData software used in C2 model has gained self-design copyright with strong functions. It can be tailor-made according to customer requirements to satisfy customer versatile demands.
※ Create main interface with intuitive preview
※ Support to load data source file
※ Combine and separate
※ Template management
※ Flexible layout design tools
![Arojet industrial ink jet coder inquire now for promotion 17]()
AROJET C2 model uses UV curing ink. UV curing is widely adopted in inkjet printing industry. UV curing ink has three major characteristics: energy-saving drying, extensive printing adaptability for printing materials, high-speed curing can shorten the follow-up processing time. The fourth characteristic of UV curing on inkjet printing is digital processing.
With the continuously improvement of the manufacturing and control technology of the inkjet printing, UV printing can meet diversified demands. In addition, UV ink does not include organic solvents, and is completely harmless to both human health and environment. UV ink is becoming more and more popular with many customers.
※ Inkjet printability
※ Anti-scratch, friction resistance and anti-corrosive
※ Hazardous substance content conforms to RoHS standard.
Company Features1. Guangdong AROJET Ink Jet Technology Co., Ltd. produces ink jet coder while searching for the specific needs in the industry.
2. We have a competent team of the quality controller (QC). They have solid experience. They assure that quality is met at every stage of our production process from purchasing raw materials to delivery.
3. Quality, innovation, hard work and zeal to excel remain the steering force behind our business. These values have led us to become a company with a powerful manufacturing hub for customers.
