Oriental Print Single pass Industrial high speed colorful digital printer

Digital ink-jet printing production process without plate making, so that simple operation, reduce the difficulty of operation.

Multi-task queue printing function, to achieve seamless single, improve production efficiency.

To meet large format printing requirements, a single file size print up to 5 meters.

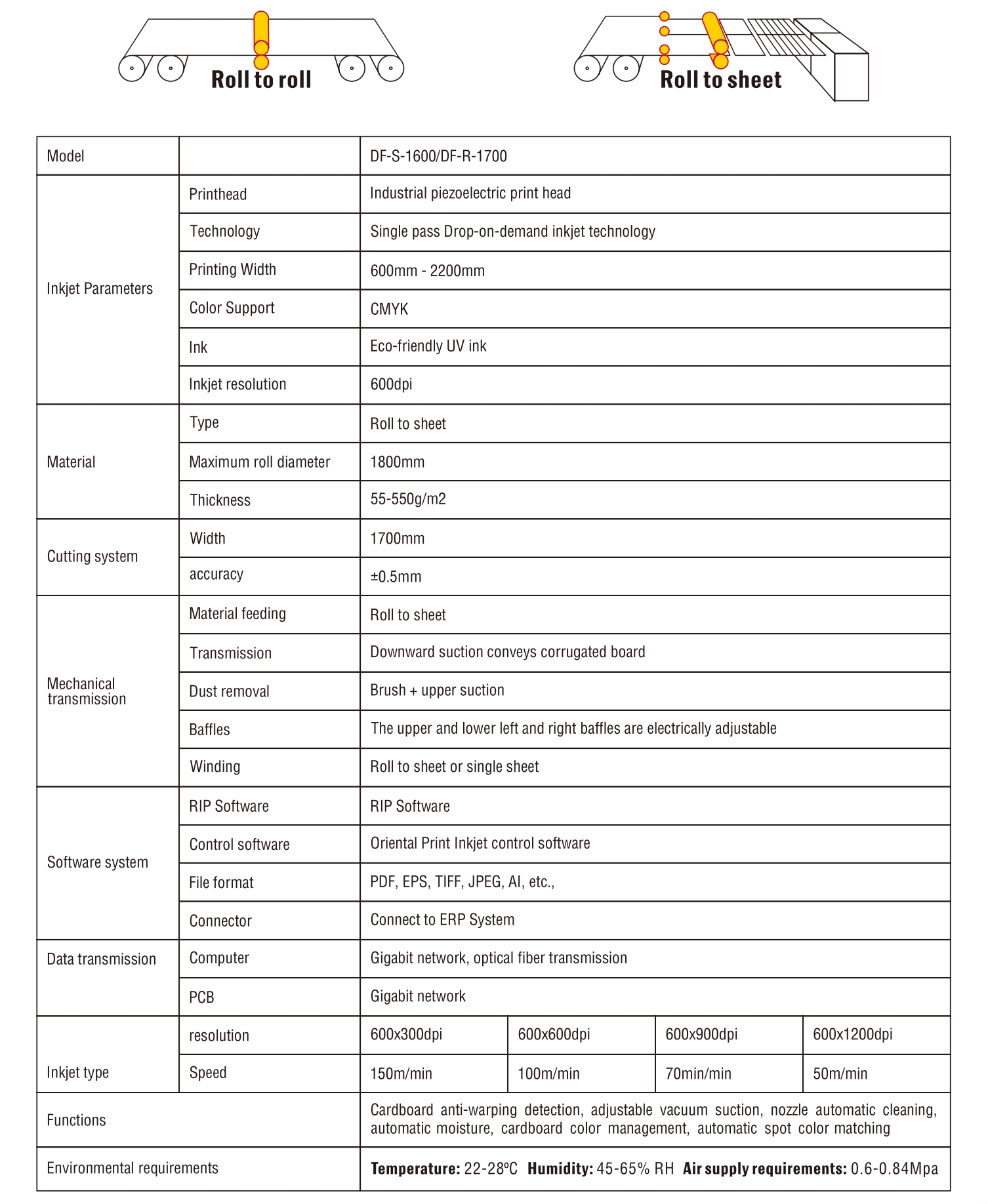

Roll-to-roll printing and roll-to-sheet two models are optional.

Single pass printing technology brings high productivity.

It can realize multi-plate seamless printing, expand more application fields.

Close-loop tension combined with real-time tension compensation, eliminate the stretch and jitter caused by material movement, so that ink printing can be ejected onto the medium more accurately, the phenomenon of uneven color is reduced.

Can achieve monochrome and color variable data support more than 100 different types of variable bar code.

1200dpi high-precision print head configuration

The physical resolution of the nozzle is 1200dpi

Achieve high-precision printing quality

Printing unit module design

Multi-group module design, each group can be moved separately

Facilitates maintenance of inkjet printing systems for simple and fast maintenance

One box, one code, variable data

Powerful variable data capabilities

Supports variable data printing of more than 100 barcode and QR codes

Secondary drying technology

Using 2 colors and one curing, lower energy can produce greater curing effect

One-stage curing effectively preheats the carton surface to prevent leaks in large-area printing under different humidity environments. One-stage curing frequently wipes the nozzle to reduce downtime, provide guarantee for long-term stable production, and improve production efficiency.

Circulating ink system design: true circulation, true protection

The nozzle ink channel circulation ink system achieves sustained and stable printing quality.

Negative pressure side suction vacuum adsorption

The side suction mechanism and the surface of the carton form a wide suction area to generate strong suction air. The flat paper allows the inkjet ink drop point to be more accurate, thereby achieving fine printing effects.

Narrow-edge printing capabilities

The control system will automatically switch the suction area on and off according to the paper size.

Extend the printing range to a very short distance from the edge of the paper to achieve a full-page printing effect.

Unique floor structure design

Through the unique design of the nozzle mounting bottom plate, it can overcome the impact of high-speed airflow on the ink dot swing of the inkjet, effectively alleviate the impact of high-speed running airflow, and achieve more perfect printing quality.

Multi-stage ink filtration

Through multi-stage ink filtration, each stage uses different filtration precision to effectively filter ink impurities and reduce the risk of nozzle clogging.

Different filtration precision also ensures that the ink characteristics are not changed and achieves fidelity of printing quality.

Micro-peristaltic nozzle maintenance technology

Through the circulation pump micro-peristalsis control technology, the ink on the surface of the nozzle is automatically eliminated. There is no need to scrape or manually wipe the surface of the nozzle after inkjet pressing, which greatly reduces the risk of nozzle damage.

High-speed multi-core RIP computing

Supports standard PDF interpretation engines

It can fully interpret the PDF format. Any PDF file can present complete graphics elements and text, ensuring color restoration, avoiding data loss, and ensuring output consistency. Optimized Windows multi-core printing technology can meet the needs of multi-nozzle combinations and high-precision images. , Multi-precision printing mode, to meet the needs of large-volume data jobs, the print buffer management function adopts RIP-while-printing and discarding printing technology, which is not limited by the data volume of Windows, making it easy to output ultra-large images.

Adaptive ink flow control

Through the content and production of the printing file, the required ink volume is calculated, and the ink volume system generates the ink flow for printing, avoiding white leakage and stringing in full-page and large-ink printing, making fine printing content more delicate and clear.

Rich color expression

Accuracy of color management to meet international color needs

Vacuum suction dust removal

The paper feeding department uses upward suction to remove dust from the cardboard to remove paper scraps and flying dust, prevent white leakage in large-area printing and frequent wiping of nozzles, reduce downtime, provide guarantee for long-term stable production, and improve production efficiency.

High resolution and high speed

When the printing resolution reaches 560dpi x 1200dpi, the printing speed can reach up to 150 meters/minute.

1111111

1111111

●Scope of application of equipment

Zipper cartons

flat cartons

heavy cartons

lunch boxes

corrugated cartons

airplane boxes

gift boxes

suitcases
