Variable Data Digital Printing Machine with UV LED Dryer Lamp

Variable Data Digital Printing Machine with UV LED Dryer Lamp

Price
Get Latest Price
Get the latest price
Quantity Needed:
Pieces
E-mail:

Basic Info.

Model NO.
C2
Supplies
UV Ink
Packaging
Bubble
Print Head Type
on-Demand Piezoelectric Print Head(Konica)
Print Head Life
100 Billion Actuations Per Print Head
Print Head Width
72 mm
Ink Color
Single Color
Curing Type
UV-LED Curing
Printing Speed
0-45 M/Min
Weight
218 Kg
Printing Software
Magicdata Variable Data-Editing Software
Ink Control
Negative Pressure for Ink Control
Ink Type
High-Quality Eco-Friendly UV Ink
Lengthways Printing Precision
360 Dpi
Crosswise Printing Precision
200 Dpi-1200 Dpi Adjustable
Material Feeding Way
Single Sheet/Roll to Roll
Power Supply
AC 100V-240V, 50Hz-60Hz, 2.7kw
Trademark
Arojet
Transport Package
Wooden Case
Specification
139*83*150 cm
Origin
China
HS Code
8443321300

1. production overview

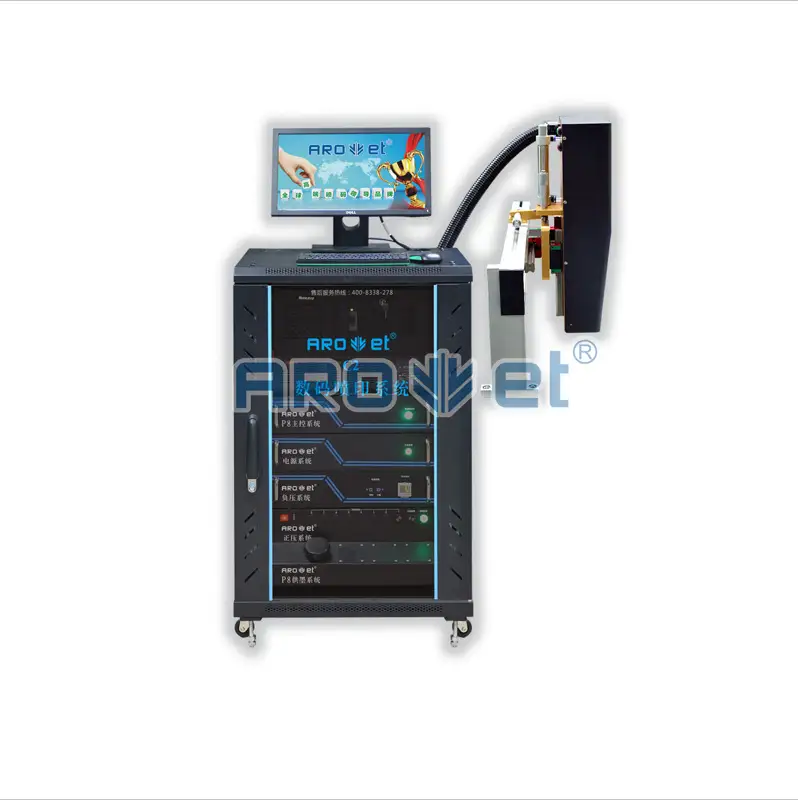

C2 is AROJET model of medium-speed roll or sheet variable data inkjet printing machine, with the printing speed up to 45m/min. 72mm of printhead width makes it suitable for wide-format printing, and a large versatile, cost-reasonable UV inkjet printing applications.

UV inkjet technology means less pre-treatment material and less post-print coating work required compared to other printing technologies, such as flexography, gravure, screen printing and water-based inkjet printing. C2 model brings you both cost-effective and practical inkjet printing solutions.

Variable Data Digital Printing Machine with UV LED Dryer Lamp


2.Product Features

  •  Medium-speed, wide-format.

  •  Industrial piezoelectric KONICA 1024 print head.

  •  Seamless stitching, perfect inkjet printing.

  •  Sheet-fed, roll to roll.

  •  Self-designed printing software, streamlined workflow.

  •  Easy operation and simple maintenance.



Variable Data Digital Printing Machine with UV LED Dryer Lamp



3.Product Specifications


Model:C2Printing software:MagicData variable data-editing software
Print head type:Industrial piezoelectric print head (KONICA)SDK:Provide interface to support second development
Print head life:100 billion actuations per print headInk control:Negative pressure for ink control, positive pressure for nozzle cleaning
Print head material:Stainless steel, Nickel alloys & Epoxy adhesiveInk type:High-quality Eco-friendly UV ink
Print head width:72mm (single print head)Ink colorSingle color
Nozzle quantity:1024 pcs (single print head)Curing type: UV-LED curing
Nozzle rows:2 rowsPrinting speed:0-45m/min. (Affected by material, resolution, environment, platform etc. factors)
Printing modules:8 groupsLengthways printing precision:360dpi
Max. width of printing:576mmCrosswise printing precision:200dpi-1200dpi adjustable
Distance from print head to material:0.5mm-2mmWeight:270KG
Material feeding way:Single piece, roll to rollSize:1.39m*0.83m*1.50m (print head case+curing case)
Power supply:AC 100V-240V, 50Hz-60HzWorking temperature:5°C-40°C
Interface type:USB 2.0Environment humidity:20%-65% RH


4.Print Head

C2 AROJET model uses KONICA piezoelectric 1024 print head. 72mm wide-format printing greatly increases the production efficiency. Fully enclosed water-proof and anti-aging print head has long service life. The print head can print up to 8 kinds of ink droplets with minimum 6pl and maximum 50pl, which has better control over the printed images, reproduce smooth color progressively and accurate match tones. High printing resolution can be achieved. When the printing speed is 30m/min. the resolution reaches 360*300dpi.

The print head for C2 model can be compact installed to improve the printing quality. With its distinctive features of medium speed and wide format, C2 model can satisfy customers from many industries with various data inkjet coding and marking demands.


Variable Data Digital Printing Machine with UV LED Dryer Lamp


5.Printing Software

The MagicData software used in C2 model has gained self-design copyright with strong functions. It can be tailor-made according to customer requirements to satisfy customer versatile demands.

  •  Create main interface with intuitive preview

  •  Support to load data source file

  •  Combine and separate

  •  Template management

  •  Flexible layout design tools


Variable Data Digital Printing Machine with UV LED Dryer Lamp

6.Printing Ink

AROJET C2 model uses UV curing ink. UV curing is widely adopted in inkjet printing industry. UV curing ink has three major characteristics: energy-saving drying, extensive printing adaptability for printing materials, high-speed curing can shorten the follow-up processing time. The fourth characteristic of UV curing on inkjet printing is digital processing.

With the continuously improvement of the manufacturing and control technology of the inkjet printing, UV printing can meet diversified demands. In addition, UV ink does not include organic solvents, and is completely harmless to both human health and environment. UV ink is becoming more and more popular with many customers.

  •  Inkjet printability

  •  Anti-scratch, friction resistance and anti-corrosive

  •  Hazardous substance content conforms to RoHS standard.


Variable Data Digital Printing Machine with UV LED Dryer Lamp

7.Reference Video

https://arojet.en.made-in-china.com

The product is able to help increase the safety of the working environment. By using this product, workers are not prone to injury. It is highly automatic and requires little manpower. The use of this product helps strengthen operators' experience or deeps their technical know-how, which enables them to have vast knowledge on the use of machines. It is highly automatic and requires little manpower.
