Side Jetting Digital Qr Codes Large Format Label Press Printer with CE Certificate

Side Jetting Digital Qr Codes Large Format Label Press Printer with CE Certificate

Price
Get Latest Price
Get the latest price
Quantity Needed:
Pieces
E-mail:

Basic Info.

Model NO.
C3
Supplies
UV Ink
Packaging
Bubble
Print Head Type
on-Demand Piezoelectric Print Head(Konica)
Print Head Life
100 Billion Actuations Per Print Head
Print Head Width
36 mm
Ink Color
Single Color
Curing Type
UV-LED Curing
Printing Speed
0-45 M/Min
Weight
218 Kg
Printing Software
Magicdata Variable Data-Editing Software
Ink Control
Patented Ink Control Design
Ink Type
High-Quality Eco-Friendly UV Ink
Lengthways Printing Precision
600 Dpi
Crosswise Printing Precision
200 Dpi-1200 Dpi Adjustable
Material Feeding Way
Single Sheet/Roll to Roll
Power Supply
AC 100V-240V, 50Hz-60Hz, 2.7kw
Ink Jeting Direction
Side Jetting
Trademark
Arojet
Transport Package
Wooden Case
Specification
139*83*150 cm
Origin
China
HS Code
8443321300


1. production overview

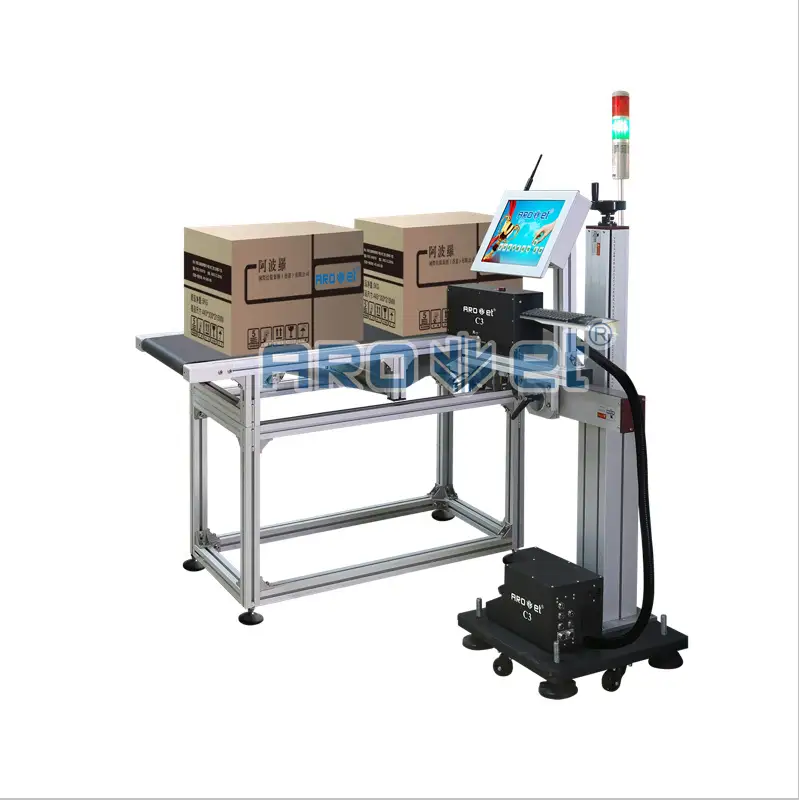

Side-jetting inkjet printing system C3 is a unique-designed AROJET model, which is specialized in inkjet printing on the side of carton, large packaging case and large packaging bag, and supporting the printing of date code, serial No., variable QR code, barcode, etc. Side-jetting types include single side jetting, double side jetting, side jetting + downward jetting. It requires hand feed and collection. The speed and width of the platform can be adjusted according to actual production demand.

We plan and design a whole online or offline solutions for our customers. The equipment can be either installed in the production line at the customer factory site or be configured an additional appropriate platform to meet our customer different requirements.

With its particular side-jetting function, model C3 has been favored by many customers and received high praise from our customers.


Side Jetting Digital Qr Codes Large Format Label Press Printer with CE Certificate

2.Product Features

  •  Side-jetting printing, unique function.

  •  Good printing effect with high definition.

  •  UV-LED curing ink to reduce ink loss.

  •  Better ink control system to keep smooth ink road and easy maintenance.

  •  Patented software,more user-friendly interface.

  •  Customization for customers with both online and offline design.


Side Jetting Digital Qr Codes Large Format Label Press Printer with CE Certificate


3.Product Specifications

Model:C3Printing software:MagicData variable data-editing software
Print head type:Industrial piezoelectric print head (KONICA)SDK:Provide interface to support second development
Print head life:100 billion actuations per print headInk control:Patented ink control design
Print head material:Stainless steel, Nickel alloys& Epoxy adhesiveInk type:High-quality Eco-friendly UV ink
Print head width:36mm (single print head)Ink colorSingle color
Nozzle quantity:512 pcs (single print head)Curing type: UV-LED curing
Nozzle rows:2 rowsPrinting speed:0-45m/min. (Affected by material, resolution, environment, platform etc. factors)
Printing modules:8 groupsLengthways printing precision:360dpi
Max. width of printing:288mmCrosswise printing precision:200dpi-1200dpi adjustable
Distance from print head to material:0.5mm-2mmWeight:218KG
Material feeding way:Single pieceSize:1.39m*0.83m*1.50m (print head case+curing case)
Power supply:AC 100V-240V, 50Hz-60HzWorking temperature:5°C-40°C
Interface type:USB 2.0Environment humidity:20%-65% RH

4.Print Head

Industrial-grade piezoelectric print head belongs to high precision product of microelectronics. Model C3 side jetting inkjet printing system adopts KONICA whole steel nozzle with long service life. The nozzle features unique anti-blocking and automatic exhaust functions, to ensure that the blocking of nozzle and the breaking of ink are not occurred. The print head is a fully enclosed design, waterproof and anti-aging. The nozzle uses automatic positive-pressure cleaning, making daily maintenance easier and more convenient.

The printing speed of model C3 is up to 45m/min. with 360dpi of lengthways printing precision and up to 1200dpi of crosswise printing precision. It can meet customer requirement for single carton fed inkjet printing.



Side Jetting Digital Qr Codes Large Format Label Press Printer with CE Certificate

5.Printing Software

MagicData software used for side jetting inkjet printing machine model C3 has powerful functions and flexible applications. MagicData's efficient and streamlined variable data printing workflow integrates multiple advanced technologies to enable users to achieve accurate and vivid variable data printing. The software provides interface to support the second development, which can be customized according to customer requirement. It is widely applied to the industries of food, wine, livestock feed and fertilizer for inkjet printing on carton and big packaging bag.

  •  Create main interface with intuitive preview

  •  Support to load data source file

  •  Combine and separate

  •  Template management

  •  Flexible layout design tools


Side Jetting Digital Qr Codes Large Format Label Press Printer with CE Certificate

6.Printing Ink

Side jetting model C3 uses high-quality UV ink which features fast drying, friction resistance and scratch resistance. The ink has good printing adaptability, suitable curing speed and excellent adhesion. UV ink does not include VOC substances and does not need solvent to be added in so it can keep stable temperature during use to make the ink road smooth and non-blocking, reducing waste and improving the production efficiency.

AROJET attaches great importance to the ink safety, provides MSDS report of the ink and conducts regular SGS testing for the inks.

  •  Zero pollution, environmental-friendly.

  •  Saving ink and improving efficiency.


Side Jetting Digital Qr Codes Large Format Label Press Printer with CE Certificate

7.Reference Video

https://arojet.en.made-in-china.com
https://arojet.en.made-in-china.com

The product can replace labor to work on operations that are harmful or dangerous, while at the same time, it can avoid operators' mistakes. The product can greatly reduce ink loss. The product plays a crucial role in different industries and it has reduced the amount for workers which helps cut labor costs. The product can greatly reduce ink loss.
