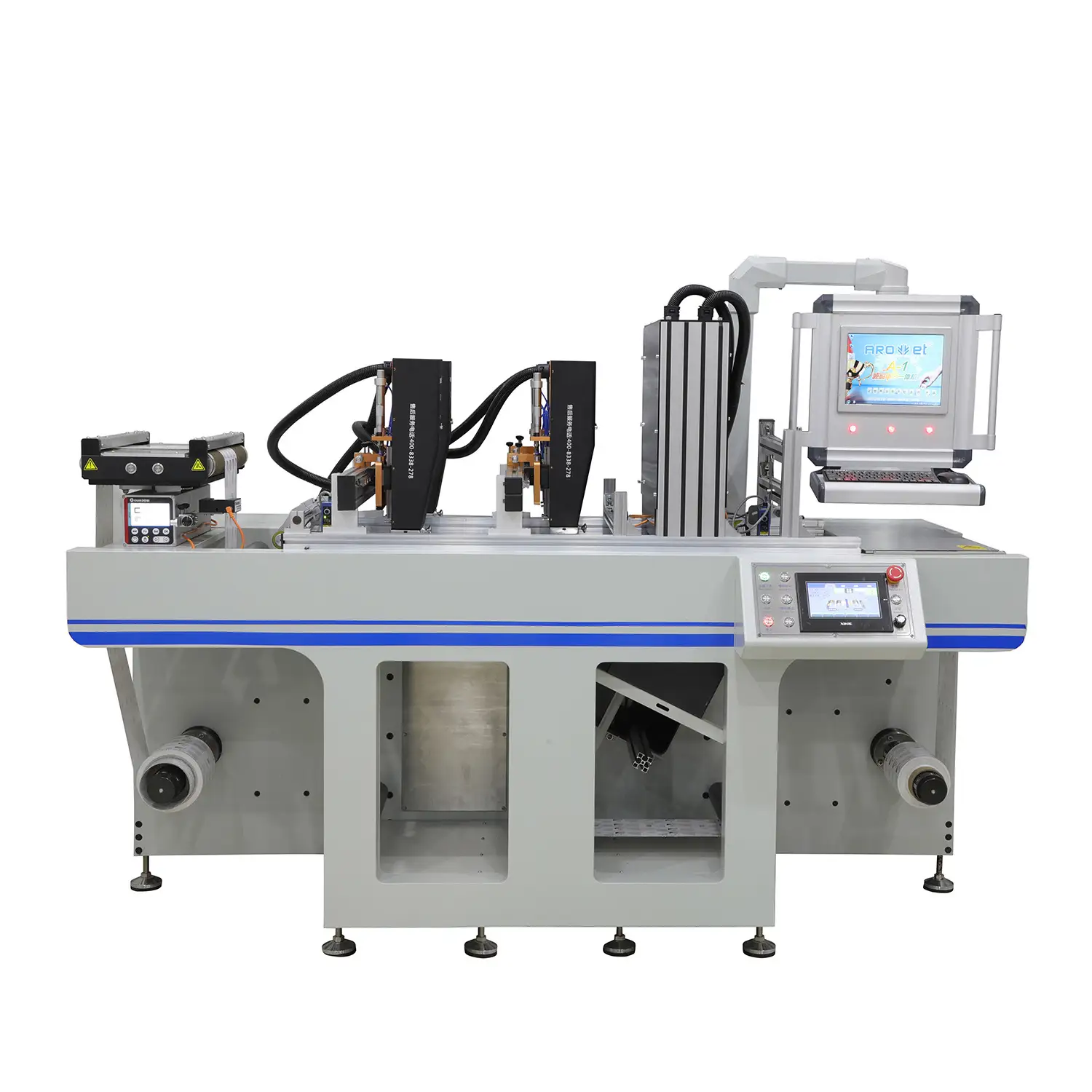

Rolling Lables Roll to Roll Dod UV Coding Machine

Rolling Lables Roll to Roll Dod UV Coding Machine

Price
Get Latest Price
Get the latest price
Quantity Needed:
Pieces
E-mail:

Basic Info.

Model NO.
A-1
Supplies
UV Ink
Packaging
Bubble
Print Head Type
on-Demand Piezoelectric Print Head(Rico
Print Head Life
100 Billion Actuations Per Print Head
Print Head Width
54 mm
Ink Color
Single Color
Curing Type
UV-LED Curing
Printing Speed
0-150 M/Min
Weight
370 Kg
Printing Software
Magicdata Variable Data-Editing Software
Ink Control
Negative Pressure for Ink Control
Ink Type
High-Quality Eco-Friendly UV Ink
Lengthways Printing Precision
600 Dpi
Crosswise Printing Precision
200 Dpi-1200 Dpi Adjustable
Material Feeding Way
Single Sheet/Roll to Roll
Power Supply
AC 100V-240V, 50Hz-60Hz, 3.0kw
Trademark
Transport Package
Wooden Box
Specification
219*118*145 cm
Origin
China
HS Code
8443321300

1. production overview

Model A-1 is very popular with our customers because of its high cost-effective performance. At the same time of its affordable price, the printing speed and precision have reached a high level too. It also can meet the customer requirements. It is the first recommendation of our sales team submitted to the customers.

A-1 is suitable for both roll to roll and sheet-fed inkjet printing, with its printing speed up to 150m/min. and the printing definition up to 600dpi*1200dpi. The printing effect is outstanding and the UV-LED curing quality is excellent.

A-1 model is widely applied to many industries for the variable data printing on label, flexible packaging, film, plastic, card and sheet, such as variable one-dimension code of GS1 DataBar/RSS, compound barcode, and electronic monitoring code, variable two-dimension code of QR code, DATAMATRIX, Chinese character code and atomic code, identification code of picture, word and number, and so on.

Rolling Lables Roll to Roll Dod UV Coding Machine



2.Product Features

  High cost performance, economical and practical.

  High printing precision and high printing quality.

  Resolution: 600*300dpi, speed: 150m/min.

  Resolution: 600*400dpi, speed: 100m/min.

  Resolution: 600*600dpi, speed: 60m/min.

  Simple installation and easy operation.

  Negative pressure for ink control, positive pressure for nozzle cleaning.

  Reconfiguration of hardware and software according to customer requirements.

  Widely compatible. Can be installed in customer current production line, or can be configured by AROJET along with the printing system.

Rolling Lables Roll to Roll Dod UV Coding Machine



3.Product Specifications

Model:A-1Printing software:MagicData variable data-editing software
Print head type:Industrial piezoelectric print head (GEN5 A+ RICOH)SDK:Provide interface to support second development
Print head life:100 billion actuations per print head (GEN5 A+ RICOH)Ink control:Negative pressure for ink control, positive pressure for nozzle cleaning
Print head material:Stainless steel, Nickel alloys & Epoxy adhesiveInk type:High-quality Eco-friendly UV ink
Print head width:54mm (single print head)Ink colorSingle color
Nozzle quantity:1280 pcs (single print head)Curing type: UV-LED curing
Nozzle rows:4 rowsPrinting speed:0-150m/min. (Affected by material, resolution, environment, platform etc. )
Printing modules:4 groupsLine Direction Resolution:600dpi
Max. width of printing:432mmFeed Direction Resolution:200dpi-1200dpi adjustable
Distance from print head to material:0.5mm-2mmWeight:370KG
Material feeding way:Single sheet, roll to roll Size:2.19m*1.18m*1.45m
Power supply:AC 100V-240V, 50Hz-60Hz, 3.0KWWorking temperature:5°C-40°C
Interface type:USB 3.0 optical fiber data transmissionEnvironment humidity:20%-65% RH


4.Print Head

AROJET A-1 model uses RICOH GEN 5 piezoelectric print head with variable ink droplet printing. The ink droplet is 7pl minimum and 35pl Maximum, which can reach photographic precision. The nozzle is an all-steel material and is not easy corroded and blocked. It can intelligently avoids blank printing, greatly saving ink. The nozzle has a long service life of 150 billion actuations. Human friendly design enables it to print many materials of different thickness. The print head can achieve perfect seamless stitches with tolerance less than 0.5mm.

Model A-1 has a stable and reliable quality, brings you high-efficient and high quality inkjet printing service.

Rolling Lables Roll to Roll Dod UV Coding Machine

5.Printing Software

MagicData is professional software designed and developed for industrial inkjet printing applications. It offers fast RIP speed, reliable & efficient job printing production, and streamlined workflow. Users can easily obtain smooth gradient, vivid images and sharp small size text with its advanced RIP technology.

Model A-1 in which MagicData software is adopted brings the customers with much wider and more flexible range of printing choice, to achieve high quality and high efficient printing production.

      Object template

      Ink estimation

      Intuitive preview
Rolling Lables Roll to Roll Dod UV Coding Machine

6.Printing Ink

AROJET inkjet printing machines use greens environmental-protective UV ink, which do not contain VOC (volatile organic compounds)substances, The UV ink which printed on the materials can achieve fast drying through AROJET patent-designed UV-LED curing water cooling system, which makes the printing high-adhesive, anti-scratching, friction-resistant and alcohol-resistant. It is widely used in variable inkjet coding on different materials of different thickness.

Model A-1 adopts single-color UV ink for printing. Thanks to the stable inkjet quality and outstanding inkjet printing effect, it has been highly praised by many of our customers. We regularly update ink SGS reports and review the MSDS reports of the ink material.

     Greens and environmental-protective

     Quick drying and high adhesion

Rolling Lables Roll to Roll Dod UV Coding Machine

This product can replace human beings to complete dangerous tasks, which greatly relieves the pressure and labor of workers in the long run. The product adopts a unique and modern design. One of the biggest advantages in the use of this product is the considerable increase in the skill and productivity of laborers. The product adopts a unique and modern design.
