multicolored highspeed sheetfed industrial inkjet coding printer Arojet Brand
- Arojet has a group of experienced technicians to provide a strong technical force for product development and business management.
- Arojet has a professional customer service team to supply free technical advice and guidance.
- Arojet thinks highly of customer and quality during business operation. And we adhere to the enterprise spirit to be pragmatic, innovative, developing and concentrated. With the orientation of the market and the basis of customer demand, we adopt advanced technology and innovative management to provide high-quality products and services, so as to build a first-class brand in the country.
- Founded in 2004, Arojet has been focusing on the R&D and manufacture of machinery for many years. We continue to provide high-quality machinery in the future.
- In addition to major cities in the country, Arojet sells industrial inkjet printer to Southeast Asia, South America and some countries and regions.
1. The offered Arojet UV inkjet marking machine is crafted using premium materials which are in compliance with the current market standards. The product can process items in a large quantity
2. In comparing with other similar products, inkjet printing machine has virtues of industrial inkjet coding printer. The product is the fruit of continuous innovation and improvement
3. Guangdong AROJET Ink Jet Technology Co., Ltd. has the perfect service quality and rigorous attitude of continuous improvement on coding printer. The specific operation instruction is offered for the product
Product Oerview

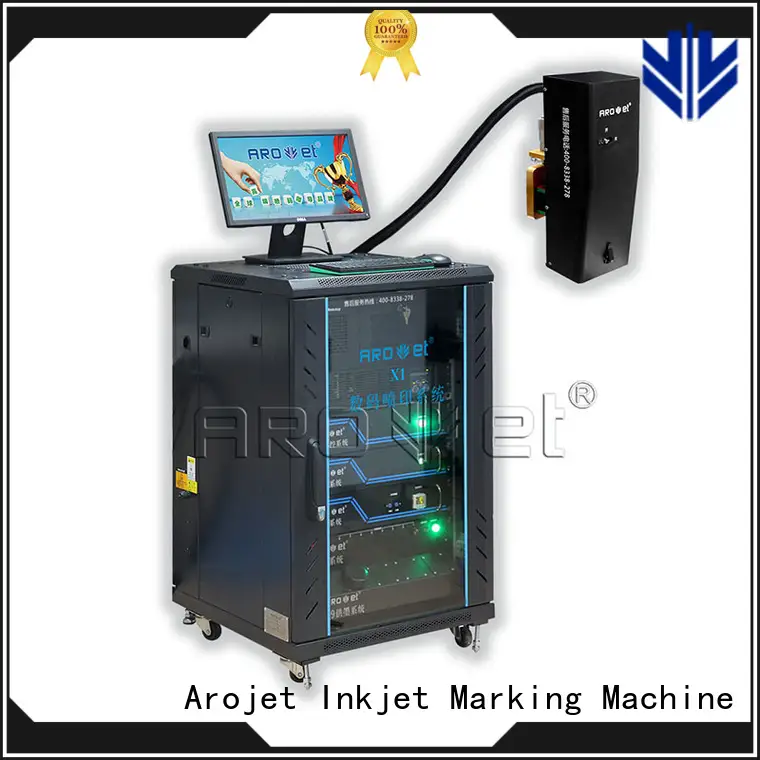

Model X1 is very popular with our customers because of its high cost-effective performance. At the same time of its affordable price, the printing speed and precision have reached a high level too. It also can meet the customer requirements. It is the first recommendation of our sales team submitted to the customers.
X1 is suitable for both roll to roll and sheet-fed inkjet printing, with its printing speed up to 150m/min. and the printing definition up to 600dpi*1200dpi. The printing effect is outstanding and the UV-LED curing quality is excellent.
X1 model is widely applied to many industries for the variable data printing on label, flexible packaging, film, plastic, card and sheet, such as variable one-dimension code of GS1 DataBar/RSS, compound barcode, and electronic monitoring code, variable two-dimension code of QR code, DATAMATRIX, Chinese character code and atomic code, identification code of picture, word and number, and so on.
We are dedicated to tailor-made our customers, to provide you with economically feasible variable data inkjet printing solutions, and help your business to a new expansion.
Product Features
◈ High cost performance, economical and practical.
◈ High printing precision and high printing quality.
◈ Resolution: 600*300dpi, speed: 150m/min.
◈ Resolution: 600*400dpi, speed: 100m/min.
◈ Resolution: 600*600dpi, speed: 60m/min.
◈ Simple installation and easy operation.
◈ Negative pressure for ink control, positive pressure for nozzle cleaning.
◈ Reconfiguration of hardware and software according to customer requirements.
◈ Widely compatible. Can be installed in customer current production line, or can be configured by AROJET along with the printing system.
Product Specifications
Model: | X1 | Printing software: | MagicData variable data-editing software |
Print head type: | Industrial piezoelectric print head | SDK: | Provide interface to support second development |
Print head life: | 150 billion actuations per print head | Ink control: | Negative pressure for ink control, positive pressure for nozzle cleaning |
Print head material: | Stainless steel, Nickel alloys & Epoxy adhesive | Ink type: | High-quality Eco-friendly UV ink |
Print head width: | 54mm (single print head) | Ink color | Single color |
Nozzle quantity: | 1280 pcs (single print head) | Curing type: | UV-LED curing |
Nozzle rows: | 4 rows | Printing speed: | 0-150m/min. (Affected by material, resolution, environment, platform etc. factors) |
Printing modules: | 4 groups | Lengthways printing precision: | 600dpi |
Max. width of printing: | 432mm | Crosswise printing precision: | 200dpi-1200dpi adjustable |
Distance from print head to material: | 0.5mm-2mm | Weight: | 270KG |
Material feeding way: | Single piece, roll to roll | Size: | 1.39m*0.83m*1.50m (print head case+curing case) |
Power supply: | AC 100V-240V, 50Hz-60Hz | Working temperature: | 5°C-40°C |
Interface type: | USB 3.0 optical fiber data transmission | Environment humidity: | 20%-65% RH |
Product Videos
Product Applications
◇ Polishing and coating equipment
◇ Slicing and slitting machine
◇ Inspection machine
◇ Flexo printing press
◇ Bagging machine
◇ Label printing press
◇ Paging machine
◇ Bagging machine
◇ Paper box slotting machine
◇ Paste box machine
◇ Label, flexible packaging
◇ Plastic, film
◇ Card, nameplate，board material
◇ Barcodes, QR codes, variable graphics and characters
◇ Food, beverage and wine
◇ Medicine, drug and health care product
Print Head
AROJET X1 model uses RICOH GEN 5 piezoelectric print head with variable ink droplet printing. The ink droplet is 7pl minimum and 35pl Maximum, which can reach photographic precision. The nozzle is an all-steel material and is not easy corroded and blocked. It can intelligently avoids blank printing, greatly saving ink. The nozzle has a long service life of 150 billion actuations. Human friendly design enables it to print many materials of different thickness. The print head can achieve perfect seamless stitches with tolerance less than 0.5mm.
Model X1 has a stable and reliable quality, brings you high-efficient and high quality inkjet printing service.
Printing Software
MagicData is professional software designed and developed for industrial inkjet printing applications. It offers fast RIP speed, reliable & efficient job printing production, and streamlined workflow. Users can easily obtain smooth gradient, vivid images and sharp small size text with its advanced RIP technology.
Model X1 in which MagicData software is adopted brings the customers with much wider and more flexible range of printing choice, to achieve high quality and high efficient printing production.
※ Object template
※ Ink estimation
※ Intuitive preview
Printing Ink
AROJET inkjet printing machines use greens environmental-protective UV ink, which do not contain VOC (volatile organic compounds)substances, The UV ink which printed on the materials can achieve fast drying through AROJET patent-designed UV-LED curing water cooling system, which makes the printing high-adhesive, anti-scratching, friction-resistant and alcohol-resistant. It is widely used in variable inkjet coding on different materials of different thickness.
Model X1 adopts single-color UV ink for printing. Thanks to the stable inkjet quality and outstanding inkjet printing effect, it has been highly praised by many of our customers. We regularly update ink SGS reports and review the MSDS reports of the ink material.
※ Greens and environmental-protective
※ Quick drying and high adhesion
Company Features
1. Guangdong AROJET Ink Jet Technology Co., Ltd. has rich production experience in producing high quality and low cost UV inkjet marking machine.
2. Guangdong AROJET Ink Jet Technology Co., Ltd. has a group of senior design elite team and management personnel for inkjet printing machine development.
3. Arojet always bears in mind the concept of integrity management. Inquire online!
