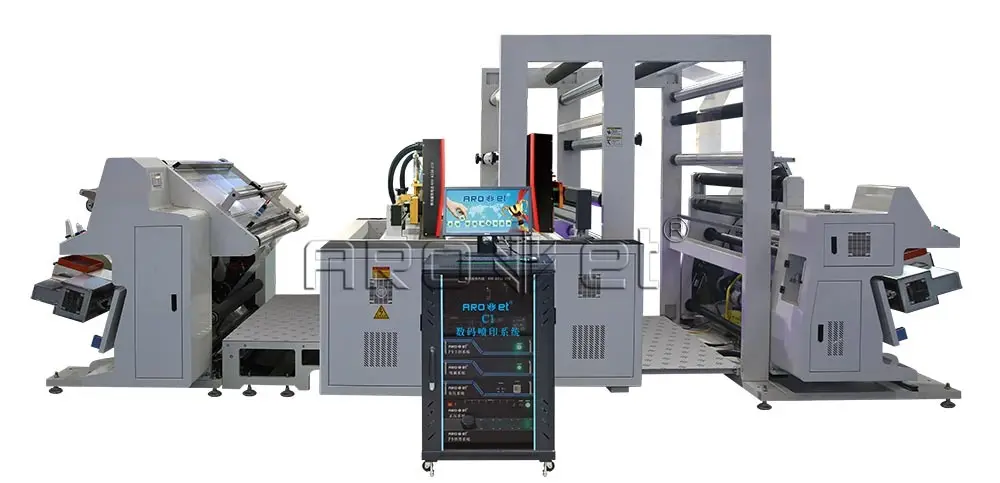

Sheet-fed featured C1 model can be used for roll to roll printing too when the printing speed is not required too high. It is widely applied to the industries of food, beverage, drug, electronics, hardware, etc.， provides enterprises with reliable-quality and suitable-price inkjet printing solutions.
industrial inkjet coding printer wideformat variable Arojet Brand
Model Number:
C1
MOQ:
1 Set
Payment:
L/C,T/T
Place of Origin:
Guangdong,China
Delivery Time:
Delivery within one month after receipt of deposit
Shipment:
Transportation by sea
Enterprise Strength
- Arojet has the professional technical personnel, quality management personnel, and first-class marketing team, which lays a solid foundation for company development.
- Arojet has always been dedicated to providing quality services based on customer demand.
- Arojet always pays attention to customers and sincere services. We are committed to providing high-quality products and comprehensive services for numerous customers. We aim to become a renowned and leading enterprise in the domestic market.
- Arojet was founded in 2004. Having struggled hard for years, we are now a machinery manufacturer with certain industry influence.
- Arojet actively develops export business. industrial inkjet printer are mainly exported to Europe, America, Africa, South Asia, Southeast Asia, and other regions.
1. Monitored production process: the production process of Arojet industrial inkjet coding printer is strictly and constantly monitored. A 24 hours shift system is carried out to ensure high-efficiency production. The longevity of the product' service life is its big virtue
2. UV inkjet marking machine is developed under new technology with advantages of industrial online inkjet printer and low costs. The product adopts a highly efficient feeding platform
3. Arojet offer inkjet printing machine with chic styles which meets different needs. The product is known for its easy installation and assembly
4. The product has been continuously improved the differentiated competitive advantages. The product is manufactured by an experienced and professional design team
5. The product has won customers from all over the world. The product is equipped with an accurate print head
Product Oerview

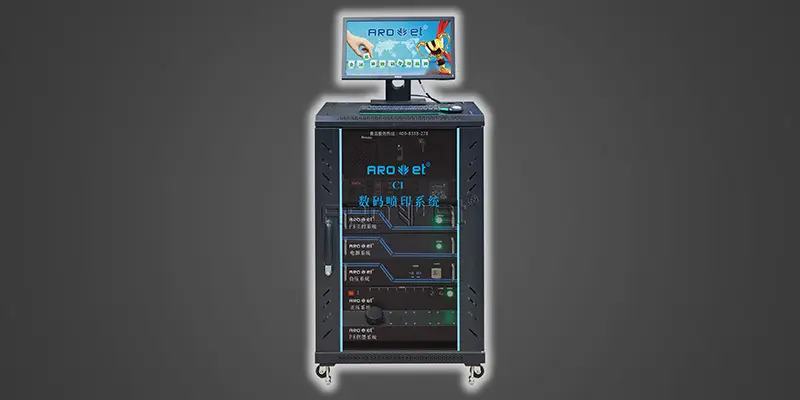

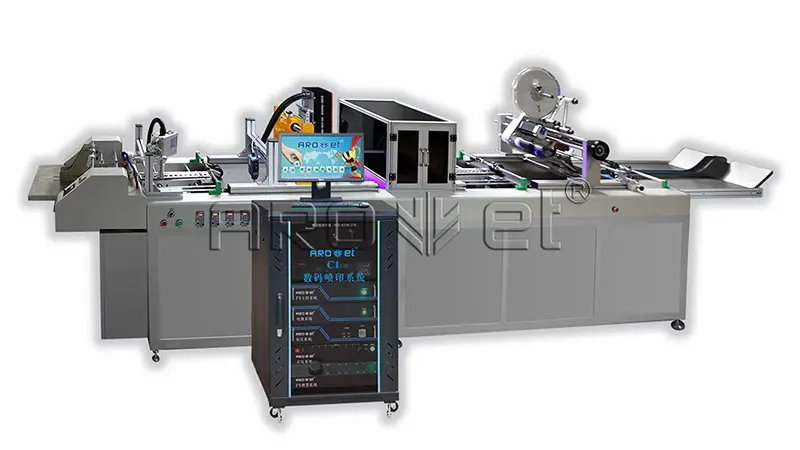

C1 sheet-fed digital variable data inkjet printing machine is suitable for different materials with different shapes. For example, it can print variable data barcode, two-dimension code, serial No., date code, etc. on bottle cap, glass cup, ceramics, metal and so on. The printing speed is 0-45m/min with physical resolution up to 360dpi.
The resolution can reach 200dpi at the speed of 50m/min. The inkjet printing grade can reach A level and the scanning qualified rate up to 99.9%. The minimum character to be printed is 1mm. The minimum size of two-dimension code printed is 5*5mm.
Product Features
◈ Single sheet or roll to roll feeding platform
◈ Industrial piezoelectric printhead with high precision.
◈ UV-LED curing with high quality.
◈ Eco-friendly water cooling system.
◈ Wide range of printed media material.
◈ Large applications of inkjet coding and marking.
Product Specifications
Model: | C1 | Printing software: | MagicData variable data-editing software |
Print head type: | Industrial piezoelectric print head (KONICA) | SDK: | Provide interface to support second development |
Print head life: | 100 billion actuations per print head | Ink control: | Negative pressure for ink control, positive pressure for nozzle cleaning |
Print head material: | Stainless steel, Nickel alloys & Epoxy adhesive | Ink type: | High-quality Eco-friendly UV ink |
Print head width: | 36mm (single print head) | Ink color | Single color |
Nozzle quantity: | 512 pcs (single print head) | Curing type: | UV-LED curing |
Nozzle rows: | 2 rows | Printing speed: | 0-45m/min. (Affected by material, resolution, environment, platform etc. factors) |
Printing modules: | 8 groups | Lengthways printing precision: | 360dpi |
Max. width of printing: | 288mm | Crosswise printing precision: | 200dpi-1200dpi adjustable |
Distance from print head to material: | 0.5mm-2mm | Weight: | 270KG |
Material feeding way: | Single piece, roll to roll | Size: | 1.39m*0.83m*1.50m (print head case+curing case) |
Power supply: | AC 100V-240V, 50Hz-60Hz | Working temperature: | 5°C-40°C |
Interface type: | USB 2.0 | Environment humidity: | 20%-65% RH |
Product Videos
Product Applications

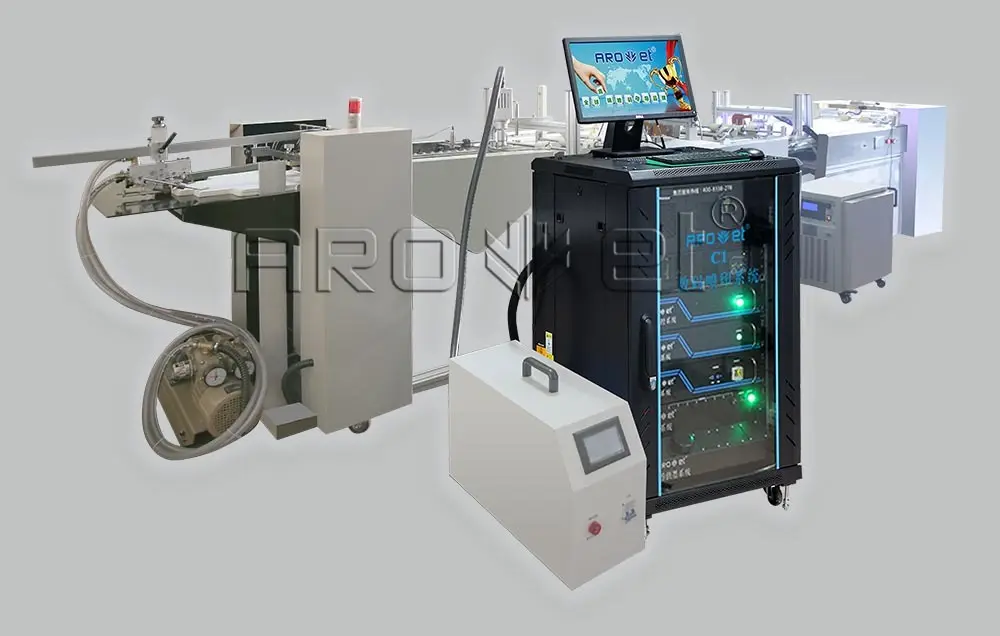

● Can be installed online in the platforms as below:
◇ Sheet feeding platform
◇ Polishing & laminating equipment
◇ Bottle cap machine
◇ Paging machine
◇ Labeling machine

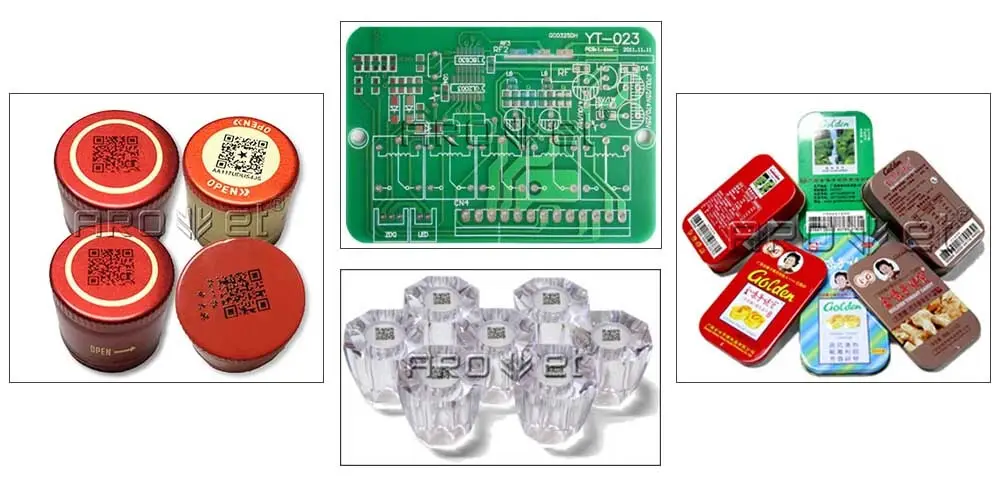

● Can be applied to a wide range of industries as below:
◇ Packaging industry for inkjet printing of One-dimensional code, two-dimensional code, identification code, etc.
◇ Paper, plastic, card, board
◇ Tinplate, glass, ceramics
◇ Food, beverage and wine
◇ Medicine, drug and health care product
◇ Hardware, electronics, daily chemicals, building materials

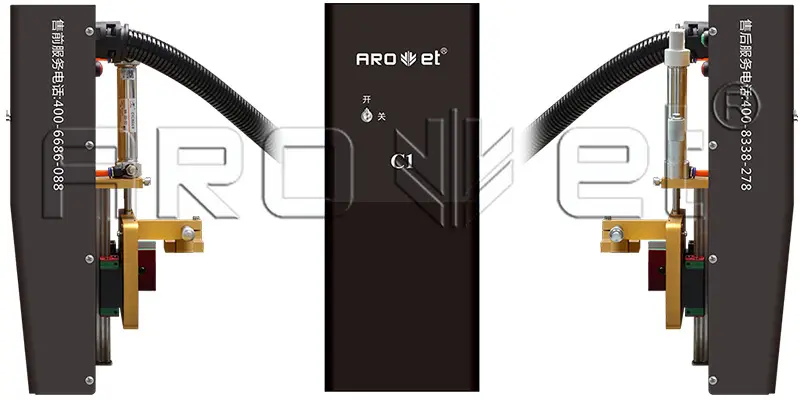

Print Head
C1 model adopts KONICA all-steel piezoelectric printhead, with compact design and high precision. It can offer a range of solutions to various customer applications.
※ Shear mode, piezoelectric DOD printhead
※ 512 nozzles, 360dpi high resolution
※ Compatible with UV ink with good printing effect
※ Easy to operation with negative pressure ink control
Printing Software
C1 model uses AROJET self-designed MagicData software, which is specially developed for monochrome and multi-color variable data printing (VDP), supporting many types of object to be printed, such as texts, dates, times, graphics, logos, serial numbers, QR codes, barcodes, MICR fonts and photo images.
MagicData software has a friendly interface, easy to understand and easy to operate. Its workflow of editing, modifying, typesetting, integrating, splitting as well as input and output is brief and streamlined. It provides versatile choices to your inkjet printing solution.

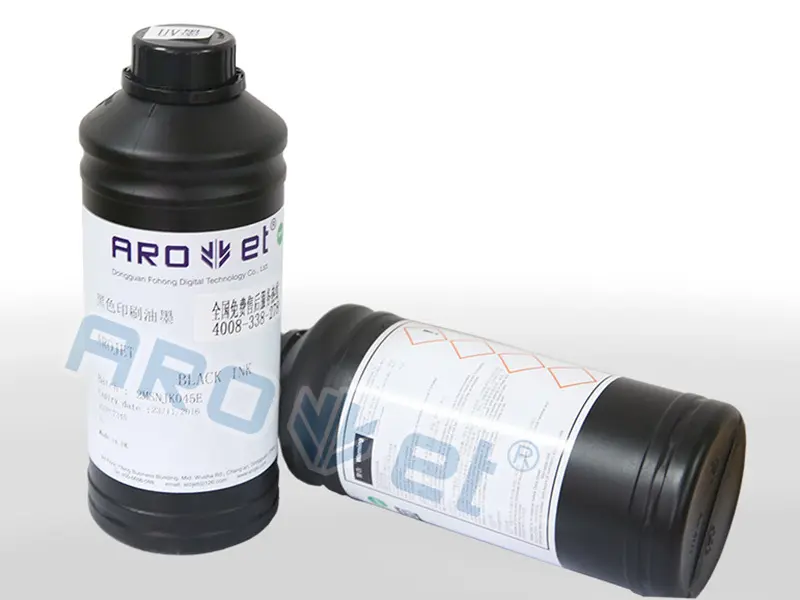

Printing Ink
UV ink is a kind of economical, efficient and green eco-friendly ink, which has covered all printing industries. C1 model adopts professional UU-8008-1 type UV ink for inkjet printing. It features fast drying, vivid image and good printing quality as well as below unique characteristics.
※ Inkjet printability
※ Anti-scratch, friction resistance and anti-corrosive

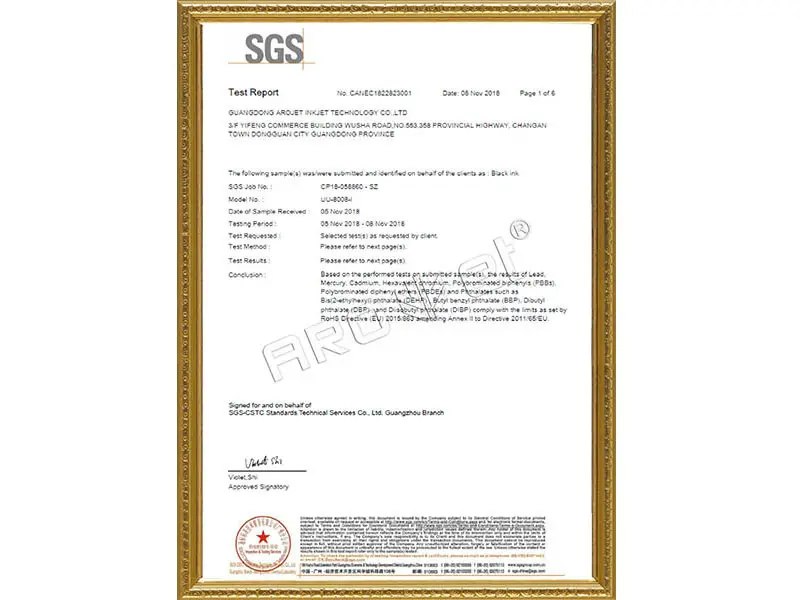

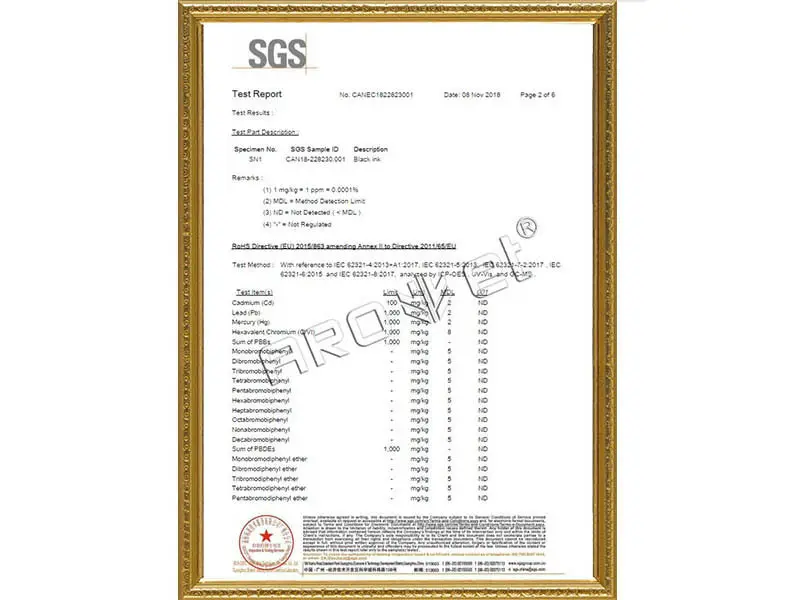

※ Hazardous substance content conforms to RoHS standard.
Company Features
1. Being a leading brand in the production of UV inkjet marking machine has always been the positioning of the Arojet brand.
2. We adopt world-advanced technology when manufacturing inkjet printing machine.
3. industrial inkjet coding printer is Guangdong AROJET Ink Jet Technology Co., Ltd. original service ideology, which fully shows its own superiority. Inquiry!
