High Speed UV Dod Coding Machines Manufacturers

High Speed UV Dod Coding Machines Manufacturers

Get Latest Price
Get the latest price
Quantity Needed:

Basic Info.

Model NO.
UV Ink
Print Head Type
on-Demand Piezoelectric Print Head(Rico
Print Head Life
100 Billion Actuations Per Print Head
Print Head Width
54 mm
Ink Color
Single Color
Curing Type
UV-LED Curing
Printing Speed
0-200 M/Min
270 Kg
Printing Software
Magicdata Variable Data-Editing Software
Ink Control
Negative Pressure for Ink Control
Ink Type
High-Quality Eco-Friendly UV Ink
Lengthways Printing Precision
600 Dpi
Crosswise Printing Precision
200 Dpi-1200 Dpi Adjustable
Material Feeding Way
Single Sheet/Roll to Roll
Power Supply
AC 100V-240V, 50Hz-60Hz, 3.0kw
Transport Package
Wooden Box
139*83*150 cm
HS Code

1. production overview

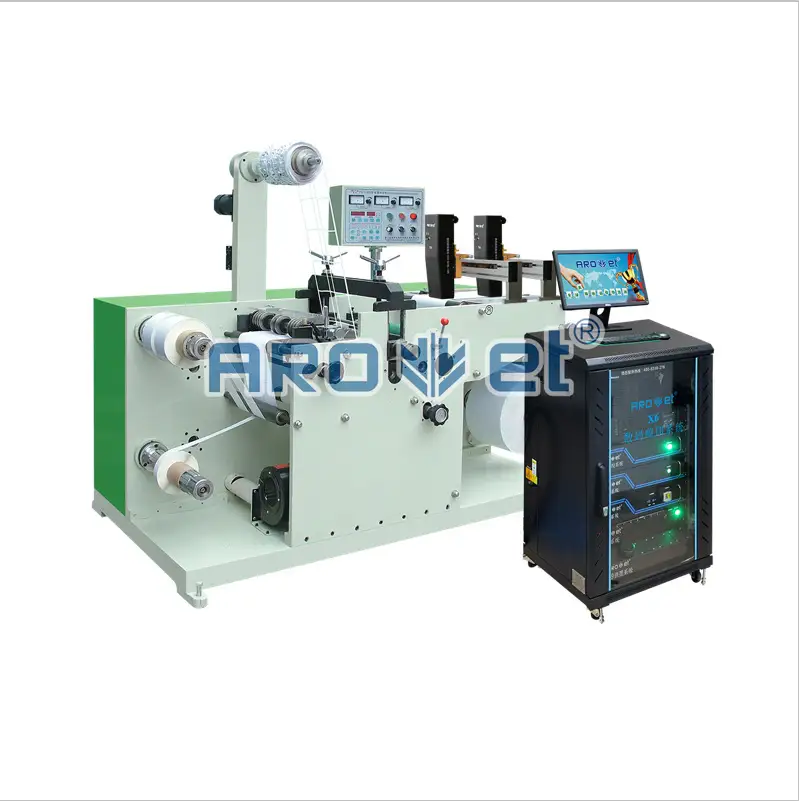

AROJET X6 high-speed variable data UV digital printing machine, is suitable for roll to roll printing and printing of flexible packaging. Its nozzle frequency is 50KHZ with printing speed up to 300m/min. The printing qualified rate can be up to 99.9% with high definition and high precision.

The patented-designed printing data algorithm improves the nozzle efficiency. The ink data optimization algorithm can reduce the ink loss, save production costs. Precise and seamless printing stitching makes printing effect more perfect. Integrated board and modular structure designs make modules expanding more convenient and maintenance simpler.

High Speed UV Dod Coding Machines Manufacturers
2.Product Features

  •  High-speed printing with printing speed up to 300m/min.

  •  Keeping printing blackness.

  •  Resolution:600x300dpi,speed:300m/min.

  •  Resolution:600x400dpi,speed:240m/min.

  •  Resolution:600x600dpi,speed:200m/min.

  •  Resolution:600x800dpi,speed:160m/min.

  •  Resolution:600x1200dpi,speed:100m/min.

  •  The nozzle has high utilization rate and low ink loss.

  •  High printing definition and precision, perfect printing effect

  •  Gigabit network data transmission. Transmission efficiency is high and more stable.

  •  High-intensity heating of UV-LED lamp makes the ink fast curing and drying.

  •  Negative pressure for ink control and positive pressure for nozzle cleaning, make the ink jetting smoothly, the ink road unblock and easy to clean.

  •  Integrated modular board and structure designs for convenient module expansion and simple maintenance.

High Speed UV Dod Coding Machines Manufacturers

3.Product Specifications

Model:X6Printing software:MagicData variable data-editing software
Print head type:Industrial piezoelectric print head (RICOH)SDK:Provide interface to support second development
Print head life:100 billion actuations per print headInk control:Negative pressure for ink control, positive pressure for nozzle cleaning
Print head material:Stainless steel, Nickel alloys & Epoxy adhesiveInk type:High-quality Eco-friendly UV ink
Print head width:54mm (single print head)Ink colorSingle color
Nozzle rows:4 rowsCuring type: UV-LED curing
Printing modules:8 groupsPrinting speed:0-300m/min. (Affected by material, resolution, environment, platform etc. factors)
Max. width of printing:432mmLengthways printing precision:600dpi
Distance from print head to material:0.5mm-2mmCrosswise printing precision:200dpi-1200dpi adjustable
Material feeding way:Single sheet, roll to rollWeight:270KG
Power supply:AC 100V-240V, 50Hz-60Hz, 3.0KWSize:1.39m*0.83m*1.50m (print head case+curing case)
Interface type:USB 3.0 and optical fiber data transmissionWorking temperature:5°C-40°C
  Environment humidity:20%-65% RH

4.Print Head

X6 high-speed industrial digital inkjet printer, is equipped with high-quality piezoelectric print head using Japan RICOH print head which has long service life. It has stable printing effect with high precision and high definition.

X6 features high-speed printing with printing speed up to 300m/min. At 600*600dpi high resolution the printing speed can reach 200m/min. It uses negative pressure for ink control which ensure the nozzle unblocked. The positive pressure cleaning makes the daily maintenance much easier.

X6 patent-designed print head has higher utilization rate and lower ink loss. It can satisfy customers for high-quality and high-efficiency production requirements.

High Speed UV Dod Coding Machines Manufacturers

5.Printing Software

AROJET patent-designed MagicData printing software is applied to model X6 high-speed single-color variable data inkjet printing. It supports a lot of content formats, such as variable data graphics BMP format, barcode, QR code text format (Chinese characters, English characters, numbers, special symbols), regulatory code, anti-counterfeit code, graphical text, etc. MagicData's features include template management, layout design,parameter adjustment, data merging and splitting, output preview, record queries, template modification, etc.

MagicData software for X6 simplifies and streamlines a wide range of printing applications, such as label, flexible packaging, plastic, film, QR code, barcode, etc. It can satisfy different customers with different requirements.

High Speed UV Dod Coding Machines Manufacturers
6.Printing Ink

AROJET inkjet printing machines use greens environmental-protective UV ink, which do not contain VOC (volatile organic compounds)substances, The UV ink which printed on the materials can achieve fast drying through AROJET patent-designed UV-LED curing water cooling system, which makes the printing high-adhesive, anti-scratching, friction-resistant and alcohol-resistant. It is widely used in variable inkjet coding on different materials of different thickness.

Model X6 adopts single-color UV ink for printing. Thanks to the stable inkjet quality and outstanding inkjet printing effect, it has been highly praised by many of our customers. We regularly update ink SGS reports and review the MSDS reports of the ink material.

     Greens and environmental-protective

     Quick drying and high adhesion

High Speed UV Dod Coding Machines Manufacturers
7.Reference Video



The product is safe and secure for people during operation. People can rest assured that potential safety hazards are not possible to occur. The product can work for quite a long time. The use of this high-tech product reduces the number of unskilled workers needed in the production process. Besides, it also raises productivity. The product can work for quite a long time.
