1. production overview

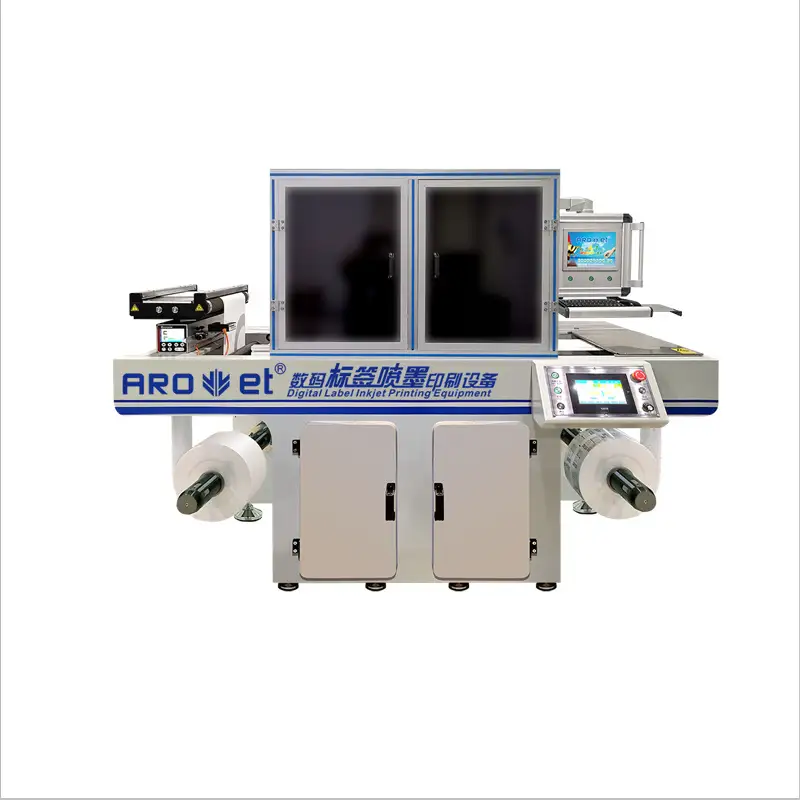

AROJET SP-9200 multiple-color wide-format industrial digital variable data UV inkjet printer adopts RICOH industrial piezoelectric printheads with printing speed range 0-150m/min. and wide format of 54mm. One printhead can print four kinds of ink CMYK, support seven grayscale printing with automatic ink compensation function, to achieve high definition and high precision. Model SP-9200 can print color variable barcode, two-dimensional code, date code, serial number, word, number, picture, etc.
It is suitable for a variety of material, such as paper, plastic, metal, glass, ceramics and so on. The printing has bright color, good gloss and stable quality.
With 1200dpi high-quality inkjet printing, SP-9200 can not only print monochrome, but also print multiple colors, brings sustained economical benefits to our customers.
Resolution: 600*400dpi, speed: 0-70m/min.
Resolution: 600*600dpi, speed: 60m/min.
RICOH print head, durable and long service life.
A wide range of application.
Variable ink drop printing, the smallest ink drop is 6pl.
High resolution and high precision.
The minimum printed character height is 1mm and two-dimensional code is 5*5mm.
UV ink, greens and environmental-friendly.
UV-LED fast curing, to keep the printing quality.
|Model:||SP-9200||Printing software:||MagicData variable data-editing software|
|Print head type:||Industrial piezoelectric print head (RICOH)||SDK:||Provide interface to support second development|
|Print head life:||100 billion actuations per print head||Ink control:||Negative pressure for ink control, positive pressure for nozzle cleaning|
|Print head material:||Stainless steel, Nickel alloys & Epoxy adhesive||Ink type:||High-quality Eco-friendly UV ink|
|Print head width:||54mm (single print head)||Ink color:||4 color CMYK|
|Nozzle quantity:||1280 pcs (single print head)||Curing type:||UV-LED curing|
|Nozzle rows:||4 rows||Printing speed:||0-150m/min. (Affected by material, resolution, environment, platform etc. factors)|
|Printing modules:||4 groups||Lengthways printing precision:||600dpi|
|Max. width of printing:||432mm||Crosswise printing precision:||200dpi-1200dpi adjustable|
|Distance from print head to material:||0.5mm-2mm||Weight:||300KG|
|Material feeding way:||Single piece, roll to roll||Size:||1.39m*0.83m*1.50m (print head case+curing case)|
|Power supply:||AC 100V-240V, 50Hz-60Hz, 3.5KW||Working temperature:||5°C-40°C|
|Interface type:||USB 3.0 optical fiber data transmission||Environment humidity:||20%-65% RH|
SP-9200 model adopts RICOH industrial piezoelectric print head, which have high durability and good stability. The Characteristics of color and width provide a broader extension direction for your business development.
One printhead has 1280 nozzles, high-density jetting.
Four-color printing, supply four kinds of CMYK ink at the same time.
Seven grayscale and 600dpi high image quality.
Negative pressure for ink control, positive pressure for cleaning. Streamlined ink jetting and simple maintenance.
SP-9200 model adopts AROJET color printing software. It has user-friendly interface and powerful editing functions, and provide more convenient and simpler operation to customers.
SP-9200 multi-colored wide format inkjet printing system uses high-quality UV inkjet printing ink. At present, there are many kinds of UV ink in the market. According to different substrate application, it can be divided into UV paper ink, UV plastic ink, UV metal ink and so on. UV ink does not include volatile organic solvents. UV ink sprays fast and dries fast, with ultra-low viscosity and non-irritating odor. There is no blocking of nozzle phenomenon in jetting process. UV ink is suitable for printing on paper, metal, glass, ceramics, PC, PVC, PET, OPP, ABS, etc. It has high hardness, high adhesion, scrubbing resistance, solvent resistance and high gloss after curing.
AROJET model SP-9200 uses 4 color CMYK UV ink, it can print both multiple color and single color, provides multi-choice solutions for customers business innovation.
Eco-friendly. The ink test result conforms to RoHS standard.
Outstanding printing adaptability.
