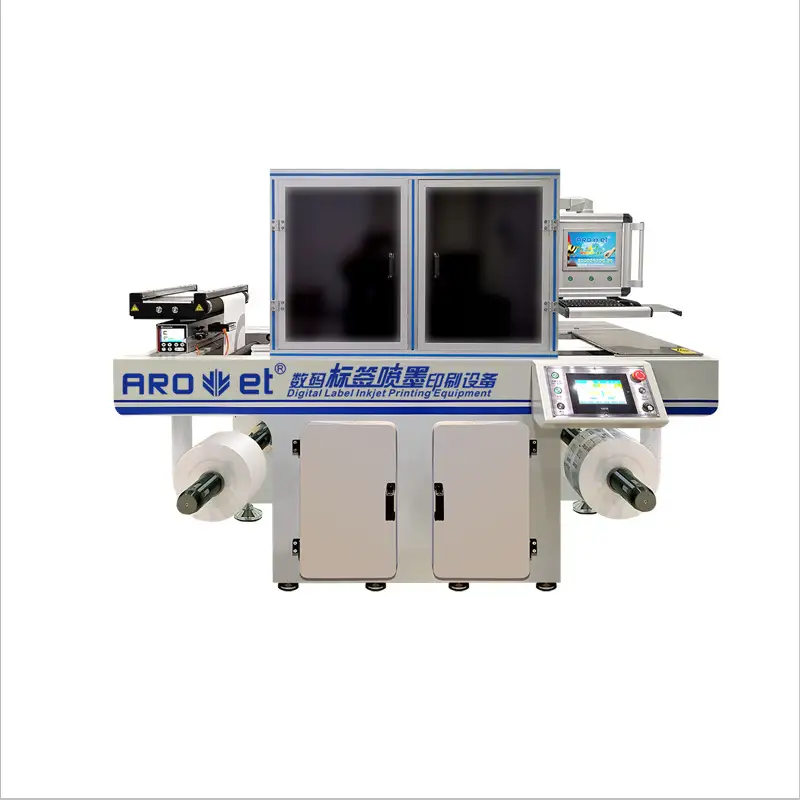

Fully Color Digital Cmyk Process UV Dod Inkjet Printer

Fully Color Digital Cmyk Process UV Dod Inkjet Printer

Get Latest Price
Get the latest price
Quantity Needed:

Basic Info.

Model NO.
UV Ink
Print Head Type
on-Demand Piezoelectric Print Head(Ricoh)
Print Head Life
100 Billion Actuations Per Print Head
Print Head Width
54 mm
Ink Color
Cmyk Full Color
Curing Type
UV-LED Curing
Printing Speed
0-100 M/Min
300 Kg
Printing Software
Magicdata Variable Data-Editing Software
Ink Control
Negative Pressure for Ink Control
Ink Type
High-Quality Eco-Friendly UV Ink
Lengthways Printing Precision
600 Dpi
Crosswise Printing Precision
200 Dpi-1200 Dpi Adjustable
Material Feeding Way
Single Sheet/Roll to Roll
Power Supply
AC 100V-240V, 50Hz-60Hz, 3.0kw
Transport Package
Wooden Box
139*83*150 cm
HS Code

1. production overview

AROJET SP-9200 multiple-color wide-format industrial digital variable data UV inkjet printer adopts RICOH industrial piezoelectric printheads with printing speed range 0-150m/min. and wide format of 54mm. One printhead can print four kinds of ink CMYK, support seven grayscale printing with automatic ink compensation function, to achieve high definition and high precision. Model SP-9200 can print color variable barcode, two-dimensional code, date code, serial number, word, number, picture, etc.

It is suitable for a variety of material, such as paper, plastic, metal, glass, ceramics and so on. The printing has bright color, good gloss and stable quality.

With 1200dpi high-quality inkjet printing, SP-9200 can not only print monochrome, but also print multiple colors, brings sustained economical benefits to our customers.

Fully Color Digital Cmyk Process UV Dod Inkjet Printer

2.Product Features

  •  Multi-colored, wide-format.

  •  Resolution: 600*400dpi, speed: 0-70m/min.

  •  Resolution: 600*600dpi, speed: 60m/min.

  •  RICOH print head, durable and long service life.

  •  A wide range of application.

  •  Variable ink drop printing, the smallest ink drop is 6pl.

  •  High resolution and high precision.

  •  The minimum printed character height is 1mm and two-dimensional code is 5*5mm.

  •  UV ink, greens and environmental-friendly.

  •  UV-LED fast curing, to keep the printing quality.

Fully Color Digital Cmyk Process UV Dod Inkjet Printer

3.Product Specifications

Model:SP-9200Printing software:MagicData variable data-editing software
Print head type:Industrial piezoelectric print head (RICOH)SDK:Provide interface to support second development
Print head life:100 billion actuations per print headInk control:Negative pressure for ink control, positive pressure for nozzle cleaning
Print head material:Stainless steel, Nickel alloys & Epoxy adhesiveInk type:High-quality Eco-friendly UV ink
Print head width:54mm (single print head)Ink color:4 color CMYK
Nozzle quantity:1280 pcs (single print head)Curing type: UV-LED curing
Nozzle rows:4 rows Printing speed:0-150m/min. (Affected by material, resolution, environment, platform etc. factors)
Printing modules:4 groupsLengthways printing precision:600dpi
Max. width of printing:432mmCrosswise printing precision:200dpi-1200dpi adjustable
Distance from print head to material:0.5mm-2mmWeight:300KG
Material feeding way:Single piece, roll to rollSize:1.39m*0.83m*1.50m (print head case+curing case)
Power supply:AC 100V-240V, 50Hz-60Hz, 3.5KWWorking temperature:5°C-40°C
Interface type:USB 3.0 optical fiber data transmissionEnvironment humidity:20%-65% RH

4.Print Head

SP-9200 model adopts RICOH industrial piezoelectric print head, which have high durability and good stability. The Characteristics of color and width provide a broader extension direction for your business development.


  •  One printhead has 1280 nozzles, high-density jetting.

  •  Four-color printing, supply four kinds of CMYK ink at the same time.

  •  Seven grayscale and 600dpi high image quality.

  •  Negative pressure for ink control, positive pressure for cleaning. Streamlined ink jetting and simple maintenance.

Fully Color Digital Cmyk Process UV Dod Inkjet Printer

5.Printing Software

SP-9200 model adopts AROJET color printing software. It has user-friendly interface and powerful editing functions, and provide more convenient and simpler operation to customers.

Fully Color Digital Cmyk Process UV Dod Inkjet Printer

6.Printing Ink

SP-9200 multi-colored wide format inkjet printing system uses high-quality UV inkjet printing ink. At present, there are many kinds of UV ink in the market. According to different substrate application, it can be divided into UV paper ink, UV plastic ink, UV metal ink and so on. UV ink does not include volatile organic solvents. UV ink sprays fast and dries fast, with ultra-low viscosity and non-irritating odor. There is no blocking of nozzle phenomenon in jetting process. UV ink is suitable for printing on paper, metal, glass, ceramics, PC, PVC, PET, OPP, ABS, etc. It has high hardness, high adhesion, scrubbing resistance, solvent resistance and high gloss after curing.

AROJET model SP-9200 uses 4 color CMYK UV ink, it can print both multiple color and single color, provides multi-choice solutions for customers business innovation.

  •  Eco-friendly. The ink test result conforms to RoHS standard.

  •  Outstanding printing adaptability.

Fully Color Digital Cmyk Process UV Dod Inkjet Printer




Employing this product with the latest technology will allow manufacturers to complete work and projects with minimal quality defects. The product can work for quite a long time. It significantly reduces waste in production because of how accurately this product can operate. This will eventually help reduce production costs. The product can work for quite a long time.
