AROJET industrial inkjet printer suppliers - a high-tech enterprise for industrial inkjet printing solutions
1. production overview

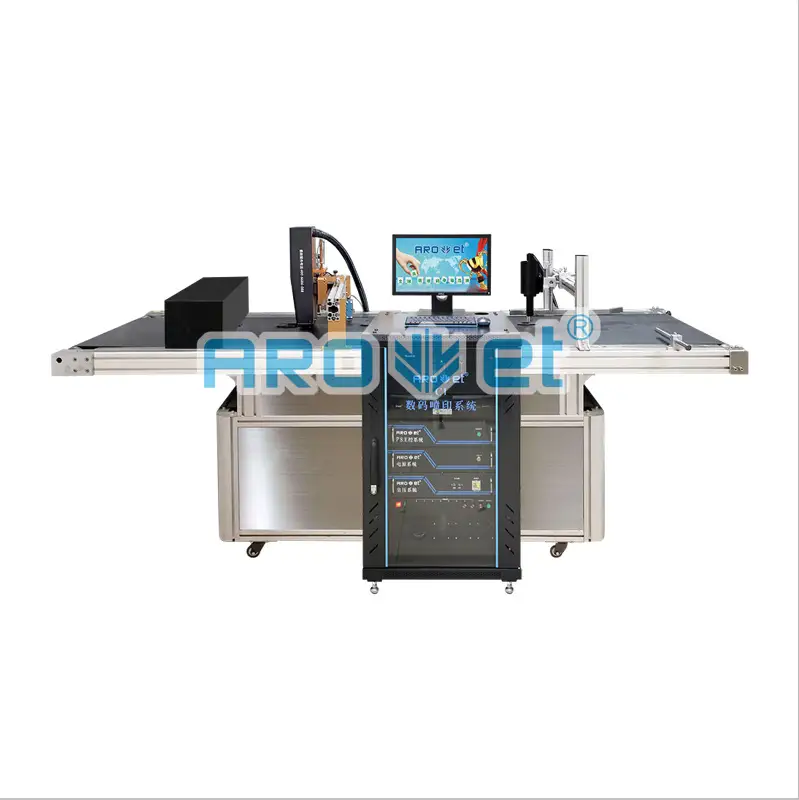

C1 sheet-fed digital variable data inkjet printing machine is suitable for different materials with different shapes. For example, it can print variable data barcode, two-dimension code, serial No., date code, etc. on bottle cap, glass cup, ceramics, metal and so on. The printing speed is 0-45m/min with physical resolution up to 360dpi.
The resolution can reach 200dpi at the speed of 50m/min. The inkjet printing grade can reach A level and the scanning qualified rate up to 99.9%. The minimum character to be printed is 1mm. The minimum size of two-dimension code printed is 5*5mm.
Sheet-fed featured C1 model can be used for roll to roll printing too when the printing speed is not required too high. It is widely applied to the industries of food, beverage, drug, electronics, hardware, etc., provides enterprises with reliable-quality and suitable-price inkjet printing solutions.
Single sheet or roll to roll feeding platform
Industrial piezoelectric printhead with high precision.
UV-LED curing with high quality.
Eco-friendly water cooling system.
Wide range of printed media material.
Large applications of inkjet coding and marking.
|Model:||C1||Printing software:||MagicData variable data-editing software|
|Print head type:||Industrial piezoelectric print head (KONICA)||SDK:||Provide interface to support second development|
|Print head life:||100 billion actuations per print head||Ink control:||Negative pressure for ink control, positive pressure for nozzle cleaning|
|Print head material:||Stainless steel, Nickel alloys & Epoxy adhesive||Ink type:||High-quality Eco-friendly UV ink|
|Print head width:||36mm (single print head)||Ink color||Single color|
|Nozzle quantity:||512 pcs (single print head)||Curing type:||UV-LED curing|
|Nozzle rows:||2 rows||Printing speed:||0-45m/min. (Affected by material, resolution, environment, platform etc. factors)|
|Printing modules:||8 groups||Lengthways printing precision:||360dpi|
|Max. width of printing:||288mm||Crosswise printing precision:||200dpi-1200dpi adjustable|
|Distance from print head to material:||0.5mm-2mm||Weight:||270KG|
|Material feeding way:||Single piece, roll to roll||Size:||1.39m*0.83m*1.50m (print head case+curing case)|
|Power supply:||AC 100V-240V, 50Hz-60Hz||Working temperature:||5°C-40°C|
|Interface type:||USB 2.0||Environment humidity:||20%-65% RH|
C1 model adopts KONICA all-steel piezoelectric printhead, with compact design and high precision. It can offer a range of solutions to various customer applications.
Shear mode, piezoelectric DOD printhead
512 nozzles, 360dpi high resolution
Compatible with UV ink with good printing effect
Easy to operation with negative pressure ink control
C1 model uses AROJET self-designed MagicData software, which is specially developed for monochrome and multi-color variable data printing (VDP), supporting many types of object to be printed, such as texts, dates, times, graphics, logos, serial numbers, QR codes, barcodes, MICR fonts and photo images.
MagicData software has a friendly interface, easy to understand and easy to operate. Its workflow of editing, modifying, typesetting, integrating, splitting as well as input and output is brief and streamlined. It provides versatile choices to your inkjet printing solution.
UV ink is a kind of economical, efficient and green eco-friendly ink, which has covered all printing industries. C1 model adopts professional UU-8008-1 type UV ink for inkjet printing. It features fast drying, vivid image and good printing quality as well as below unique characteristics.
Anti-scratch, friction resistance and anti-corrosive
Hazardous substance content conforms to RoHS standard.
