Dod UV Inkjet Printer with Card Data Personalization Machine

Dod UV Inkjet Printer with Card Data Personalization Machine

Price
Get Latest Price
Get the latest price
Quantity Needed:
Pieces
E-mail:

Basic Info.

Model NO.
X9
Supplies
UV Ink
Packaging
Bubble
Print Head Type
on-Demand Piezoelectric Print Head(Rico
Print Head Life
100 Billion Actuations Per Print Head
Print Head Width
54 mm
Ink Color
Single Color
Curing Type
UV-LED Curing
Printing Speed
0-350 M/Min
Weight
270 Kg
Printing Software
Magicdata Variable Data-Editing Software
Ink Control
Negative Pressure for Ink Control
Ink Type
High-Quality Eco-Friendly UV Ink
Lengthways Printing Precision
1200 Dpi
Crosswise Printing Precision
200 Dpi-1200 Dpi Adjustable
Material Feeding Way
Single Sheet/Roll to Roll
Power Supply
AC 100V-240V, 50Hz-60Hz, 3.0kw
Trademark
Arojet
Transport Package
Wooden Box
Specification
139*83*150 cm
Origin
China
HS Code
8443321300

1. production overview

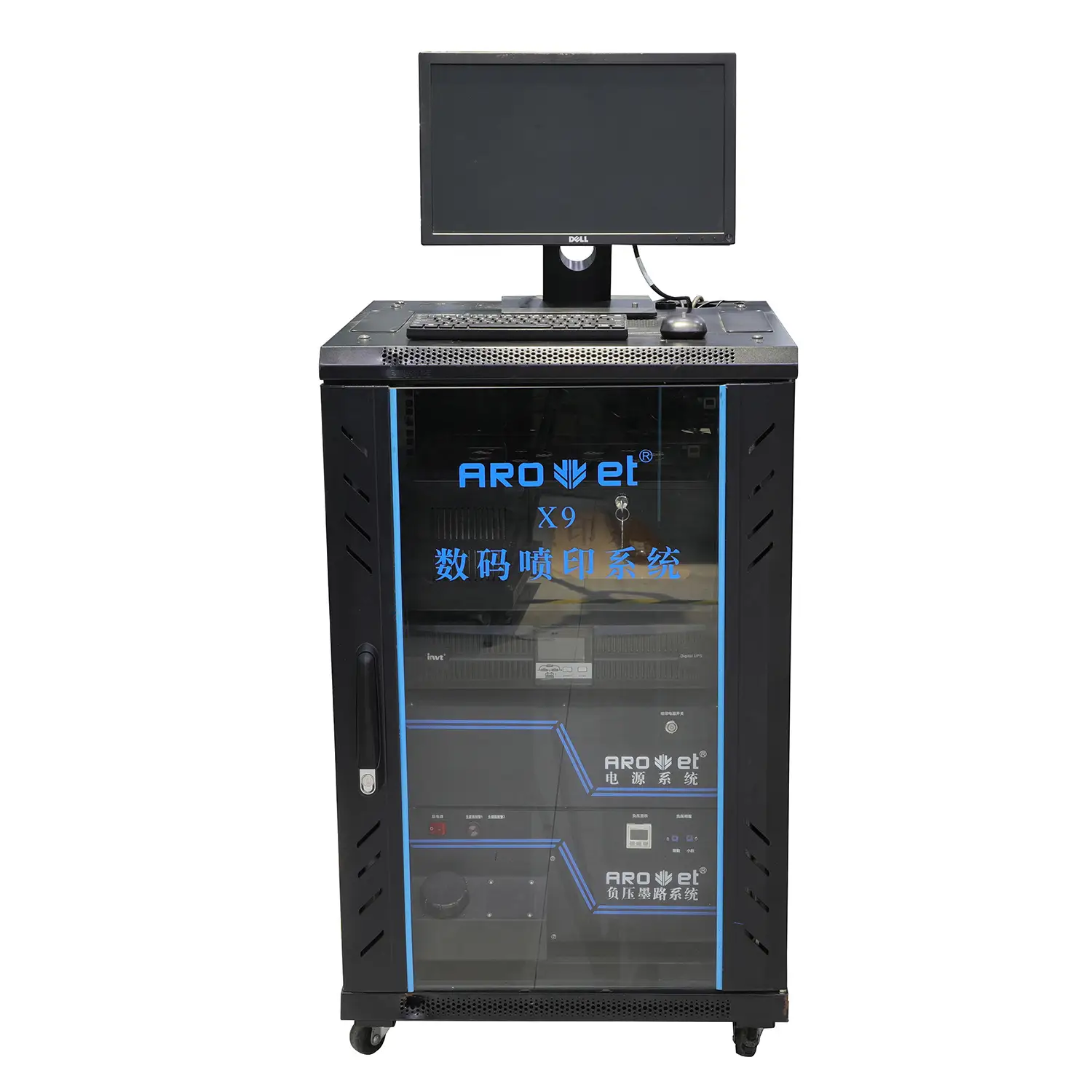

X9 model, AROJET latest ultra-high speed industrial digital variable data UV inkjet printing system, was designed and developed using state-of-art high technology. It is suitable for the roll to roll printing of flexible packaging, label, plastic, film, etc. The printing speed can reach 350m/min.

With the printing resolution up to 1200*1200dpi and qualified scanning rate up to 99.9%. It can be applied to the inkjet printing of variable QR code, barcode, serial No, date code, variable image, character and number in a variety of industries.

With the accurate negative pressure ink control and constant ink heating technology, X9 inkjet system keeps smooth and non-blocking ink road, to ensure the high definition and high precision, and to satisfy customers with high efficiency and high quality inkjet printing solutions.

Dod UV Inkjet Printer with Card Data Personalization Machine




2.Product Features

  • Ultra-high speed printing with high quality.

  •  Resolution: 600*600dpi, speed: 200m/min.

  •  Resolution: 600*450dpi, speed: 280m/min.

  •  Resolution: 600*400dpi, speed: 300m/min.

  •  RICOH customized print head, with long service life.

  •  24*7 hours running without interruption to realize high-efficient production.

  •  Software template technology, with seamless printing. Stitching error no less than 0.5mm .

  •  The minimum character height printed is 1mm.

  •  Equipped with AROJET self-developed UV-LED curing water-cooling system, to achieve instantly fast drying and reduction of the post-processing time.

  •  Can both be installed in customer's production line and be self-equipped platform


Dod UV Inkjet Printer with Card Data Personalization Machine

3.Product Specifications


Model:X9Printing software:MagicData variable data-editing software
Print head type:Industrial piezoelectric print head ( RICOH)SDK:Provide interface to support second development
Print head life:100 billion actuations per print headInk control:Negative pressure for ink control, positive pressure for nozzle cleaning
Print head material:Stainless steel, Nickel alloys & Epoxy adhesiveInk type:High-quality Eco-friendly UV ink
Print head width:54mm (single print head)Ink colorSingle color
Nozzle rows:8 rowsCuring type: UV-LED curing
Printing modules:8 groups (can be customized up to 100 modules)Printing speed:0-350m/min. (Affected by material, resolution, environment, platform etc. factors)
Max. width of printing:432mmLengthways printing precision:1200dpi
Distance from print head to material:0.5mm-2mmCrosswise printing precision:200dpi-1200dpi adjustable
Material feeding way:Single piece, roll to rollWeight:270KG
Power supply:AC 100V-240V, 50Hz-60Hz, 3KWSize:1.39m*0.83m*1.50m (print head case+curing case)
Interface type:USB 3.0 and optical fiber data transmissionWorking temperature:5°C-40°C
  Environment humidity:20%-65% RH.


4.Print Head

Ultra-speed X9 model uses customized RICOH industrial piezoelectric printhead, which is in all stainless steel material. It is wear-resistant and corrosion-resistant and has long service life. The printhead adopts advanced variable ink droplet technology, with the ink droplet range of 7pl, 14pl and 21pl.



The strong nozzle compensation function makes the output image more accurate, more hierarchical and more uniform. Variable single and double rows can be printed quickly or slowly.



With the intelligent white skipping function, X9 RICOH printhead can identify the blank area automatically, saving ink and improving production efficiency. The automatic flash function keeps the nozzles in good working condition, and makes the machine achieve high efficient and high quality production.

Dod UV Inkjet Printer with Card Data Personalization Machine


5.Printing Software

AROJET patent-designed MagicData printing software is applied to model X9 high-speed single-color variable data inkjet printing. It supports a lot of content formats, such as variable data graphics BMP format, barcode, QR code text format (Chinese characters, English characters, numbers, special symbols), regulatory code, anti-counterfeit code, graphical text, etc. MagicData's features include template management, layout design,parameter adjustment, data merging and splitting, output preview, record queries, template modification, etc.

MagicData software for X9 simplifies and streamlines a wide range of printing applications, such as label, flexible packaging, plastic, film, QR code, barcode, etc. It can satisfy different customers with different requirements.

Dod UV Inkjet Printer with Card Data Personalization Machine

6.Printing Ink

AROJET inkjet printing machines use greens environmental-protective UV ink, which do not contain VOC (volatile organic compounds)substances, The UV ink which printed on the materials can achieve fast drying through AROJET patent-designed UV-LED curing water cooling system, which makes the printing high-adhesive, anti-scratching, friction-resistant and alcohol-resistant. It is widely used in variable inkjet coding on different materials of different thickness.

Model X9 adopts single-color UV ink for printing. Thanks to the stable inkjet quality and outstanding inkjet printing effect, it has been highly praised by many of our customers. We regularly update ink SGS reports and review the MSDS reports of the ink material.

     Greens and environmental-protective

     Quick drying and high adhesion

Dod UV Inkjet Printer with Card Data Personalization Machine

7.Reference Video
