Company Advantages1. Arojet industrial inkjet printing machine has to go through a series of quality tests to guarantee that it is up to the standard cooling effect. This testing process is under strict inspection by our QC team with qualified knowledge of refrigeration. The product implements an eco-friendly mechanism
2. This product ensures that the images projected by a multimedia projector visible to the audience and ensures they are displayed at the best quality possible. It is guaranteed with a superb crosswise and lengthways printing precision
3. The quality control system is implemented and optimized in order to improve the quality of this product. The product ensures stable and reliable performance
4. With company philosophy of 'Quality comes first.', the product is guaranteed to meet the highest quality standards. It has gained wide acceptance and recognition from abroad
5. The product is fabricated under strict quality control and its quality is stable enough. The product can work for quite a long time

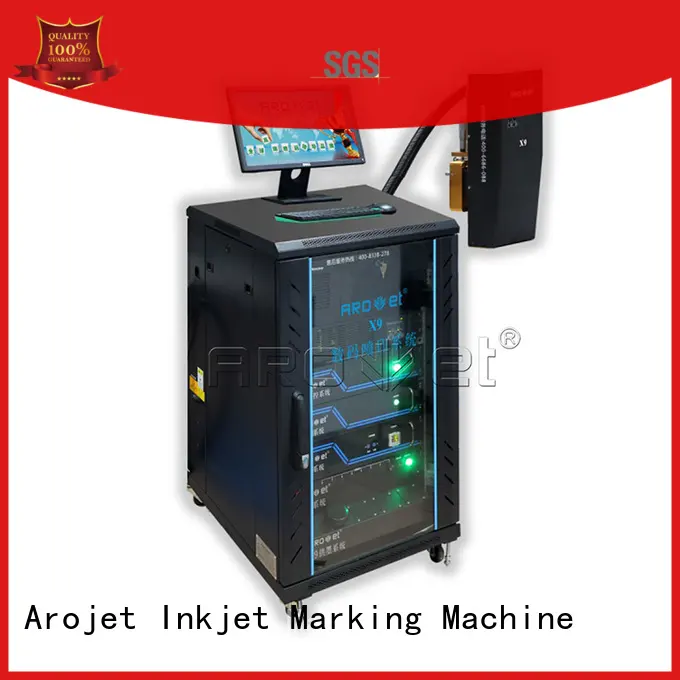

X9 model, AROJET latest ultra-high speed industrial digital variable data UV inkjet printing system, was designed and developed
using state-of-art high technology. It is suitable for the roll to roll printing of flexible packaging, label, plastic, film, etc. The printing speed can reach 350m/min.
With the printing resolution up to 1200*1200dpi and qualified scanning rate up to 99.9%. It can be applied to the inkjet printing of variable QR code, barcode, serial No, date code, variable image, character and number in a variety of industries.
![c3 industrial inkjet printing machine from China for film Arojet 11]()
With the accurate negative pressure ink control and constant ink heating technology, X9 inkjet system keeps smooth and non-blocking ink road, to ensure the high definition and high precision, and to satisfy customers with high efficiency and high quality inkjet printing solutions.
◈ Ultra-high speed printing with high quality.
◈ Resolution: 600*600dpi, speed: 200m/min.
◈ Resolution: 600*450dpi, speed: 280m/min.
◈ Resolution: 600*400dpi, speed: 300m/min.
◈ RICOH customized print head, with long service life.
◈ 24*7 hours running without interruption to realize high-efficient production.
◈ Software template technology, with seamless printing. Stitching error no less than 0.5mm .
◈ The minimum character height printed is 1mm.
◈ Equipped with AROJET self-developed UV-LED curing water-cooling system, to achieve instantly fast drying and reduction of the post-processing time.
◈ Can both be installed in customer’s production line and be self-equipped platform
![c3 industrial inkjet printing machine from China for film Arojet 13]()
Model: | X9 | Printing software: | MagicData variable data-editing software |
Print head type: | Industrial piezoelectric print head ( RICOH) | SDK: | Provide interface to support second development |
Print head life: | 100 billion actuations per print head | Ink control: | Negative pressure for ink control, positive pressure for nozzle cleaning |
Print head material: | Stainless steel, Nickel alloys & Epoxy adhesive | Ink type: | High-quality Eco-friendly UV ink |
Print head width: | 54mm (single print head) | Ink color | Multiple color |
Nozzle rows: | 8 rows | Curing type: | UV-LED curing |
Printing modules: | 8 groups (can be customized up to 100 modules) | Printing speed: | 0-350m/min. (Affected by material, resolution, environment, platform etc. factors) |
Max. width of printing: | 432mm | Lengthways printing precision: | 1200dpi |
Distance from print head to material: | 0.5mm-2mm | Crosswise printing precision: | 200dpi-1200dpi adjustable |
Material feeding way: | Single piece, roll to roll | Weight: | 270KG |
Power supply: | AC 100V-240V, 50Hz-60Hz | Size: | 1.39m*0.83m*1.50m (print head case+curing case) |
Interface type: | USB 3.0 or Gigabit LAN | Working temperature: | 5°C-40°C |
| | Environment humidity: | 20%-65% RH. |
● Can be installed online in the platforms as below:
◇ High-speed flexographic press
◇ High-speed full rotary label printing machine
◇ High-speed gravure press
◇ Automatic inspection machine
◇ High-speed slicing & slitting machine
◇ Varnishing and laminating machine
◇ Paging machine
● Can be applied to a wide range of industries as below:
◇ Label, flexible packaging
◇ Film & plastics, including PVC, PET, OPP, BOPP, etc.
◇ Two-dimension code, barcode, serial No., date code, etc.
◇ Textile and clothing
◇ Electronics, hardware and daily chemicals.
◇ Food, beverage and wine
◇ Medicine, drug and health product
Ultra-speed X9 model uses customized RICOH industrial piezoelectric printhead, which is in all stainless steel material. It is wear-resistant and corrosion-resistant and has long service life. The printhead adopts advanced variable ink droplet technology, with the ink droplet range of 7pl, 14pl and 21pl.
The strong nozzle compensation function makes the output image more accurate, more hierarchical and more uniform. Variable single and double rows can be printed quickly or slowly.
With the intelligent white skipping function, X9 RICOH printhead can identify the blank area automatically, saving ink and improving production efficiency. The automatic flash function keeps the nozzles in good working condition, and makes the machine achieve high efficient and high quality production.
![c3 industrial inkjet printing machine from China for film Arojet 16]()
MagicData software is used for AROJET series inkjet printer. It offers user-friendly interface to interactively control the printer, monitor printer status and set printer options.
※ Easy to monitor and control printer and job status with instant feedback.
※ Support multiple print modes management.
※ Directly add job to printer and set job properties.
※ Precise compensation algorithm for printhead physical position error.
※ UV-LED lamp setting.
※ Support the third party RIP software.
![c3 industrial inkjet printing machine from China for film Arojet 17]()
X9 ultra-high speed inkjet printing machine uses new type of UV ink. Compared with ordinary ink, UV ink has a great improvement in printing adaptability and printing quality. As UV ink is 100% solid substance, no volatile solvent included, the ink adhesion will not change with the change of environment conditions, therefore the quality is exactly the same. Instant drying after printing keeps the products clean and save time and energy. UV ink has become a mature ink technology. It is applied to many industries for inkjet printing, providing enterprises with new business development directions.
UV ink has become a mature ink technology. It is applied to many industries for inkjet printing, providing enterprises with new business development directions.
※ No VOC substance involved, 100% environmental-friendly.
※ Fast curing, wear-resistance, corrosion-resistance.
※ No hurt to printing substrate.
Company Features1. As a productive enterprise, Guangdong AROJET Ink Jet Technology Co., Ltd. made big progress in sales volume over the years. The technology strength has fully showed in the production and quality of high speed inkjet printer.
2. Guangdong AROJET Ink Jet Technology Co., Ltd. has advanced production equipment and testing instruments, and its overall technical level is at the leading position in China.
3. inkjet coding machine are produced by the highest technology of Arojet. Guangdong AROJET Ink Jet Technology Co., Ltd. attaches great importance to the needs of customers and their feedbacks. Inquire online!
