Arojet sp9600 coding printer with good price bulk production
-
v s
1. Arojet carton box inkjet printer is manufactured complying with international electrical safety standards. For example, it meets the safety requirements of IEC International Standards.
2. This product is simple and outstanding. It has a simplistic machine design and fewer parts, which allows it to run more efficiently.
3. Guangdong AROJET Ink Jet Technology Co., Ltd. is sophisticated in the field with decades years of experience.
4. Guangdong AROJET Ink Jet Technology Co., Ltd. has obtained certificate of design patent.
Product Oerview

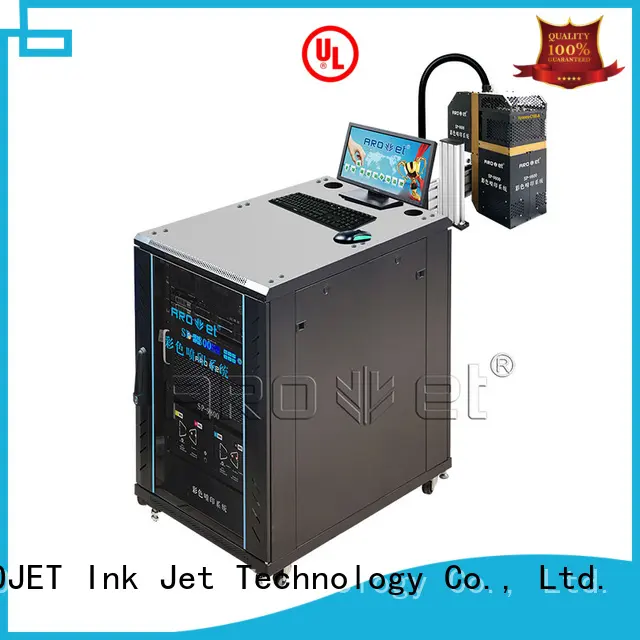

AROJET SP-9800 multiple-color wide-format industrial digital variable data UV inkjet printer adopts KYOCERA industrial piezoelectric printhead with printing speed range 0-100m/min. and wide format of 108mm. One printhead can print four kinds of ink CMYK, support seven grayscale printing with automatic ink compensation function, to achieve high definition and high precision. Model SP-9800 can print color variable barcode, two-dimensional code, date code, serial number, word, number, picture, etc.
It is suitable for a variety of material, such as paper, plastic, metal, glass, ceramics and so on. The printing has bright color, good gloss and stable quality.
With 600dpi high-quality inkjet printing, SP-9800 can not only print monochrome, but also print multiple colors, brings sustained economical benefits to our customers.
Product Features
◈ Multi-colored, wide-format.
◈ Resolution: 600*400dpi, speed: 0-70m/min.
◈ Resolution: 600*600dpi, speed: 60m/min.
◈ KYOCERA print head, durable and long service life.
◈ A wide range of application.
◈ Variable ink drop printing, the smallest ink drop is 6pl.
◈ High resolution and high precision.
◈ The minimum printed character height is 1mm and two-dimensional code is 5*5mm.
◈ UV ink, greens and environmental-friendly.
◈ UV-LED fast curing, to keep the printing quality.
Product Specifications
Model: | SP-9800 | Printing software: | MagicData variable data-editing software |
Print head type: | Industrial piezoelectric print head (KYOCERA) | SDK: | Provide interface to support second development |
Print head life: | 100 billion actuations per print head | Ink control: | Negative pressure for ink control, positive pressure for nozzle cleaning |
Print head material: | Stainless steel, Nickel alloys & Epoxy adhesive | Ink type: | High-quality Eco-friendly UV ink |
Print head width: | 108mm (single print head) | Ink color: | 4 color CMYK |
Nozzle quantity: | 2656 pcs (single print head) | Curing type: | UV-LED curing |
Nozzle rows: | 16 rows | Printing speed: | 0-100m/min. (Affected by material, resolution, environment, platform etc. factors) |
Printing modules: | 4 groups | Lengthways printing precision: | 600dpi |
Max. width of printing: | 864mm | Crosswise printing precision: | 200dpi-1200dpi adjustable |
Distance from print head to material: | 0.5mm-2mm | Weight: | 270KG |
Material feeding way: | Single piece, roll to roll | Size: | 1.39m*0.83m*1.50m (print head case+curing case) |
Power supply: | AC 100V-240V, 50Hz-60Hz | Working temperature: | 5°C-40°C |
Interface type: | USB 3.0 optical fiber data transmission | Environment humidity: | 20%-65% RH |
Product Videos
Product Applications
◇ Single sheet or roll to roll feeding platform
◇ Polishing and coating equipment
◇ Slicing and slitting machine
◇ Automatic inspection machine
◇ Bottle cap machine
◇ flexographic press
◇ labeling machine
◇ Paging machine
◇ Paper, plastic, metal, glass, ceramics, eg. artwork paper, heat sensitive paper, aluminized paper, PET, PVC, OPP, PE,tinplate, gold and silver foil, etc.
◇ Variable two-dimension code, one-dimension code, date code, character, number, image, etc.
◇ Electronics and hardware
◇ Food, beverage and wine
◇ Medicine, drug and health care product
Print Head
SP-9800 model adopts KYOCERA industrial piezoelectric print head, with ceramic nozzles, which have high durability and good stability. The Characteristics of color and width provide a broader extension direction for your business development.
※ One printhead has 2656 nozzles, high-density jetting.
※ Four-color printing, supply four kinds of CMYK ink at the same time.
※ Seven grayscale and 600dpi high image quality.
※ 108mm wide-format is the widest format in current printhead industry and simplify the configured equipments.
※ Negative pressure for ink control, positive pressure for cleaning. Streamlined ink jetting and simple maintenance.
Printing Software
SP-9800 model adopts AROJET color printing software. It has user-friendly interface and powerful editing functions, and provide more convenient and simpler operation to customers.
The workflow chart of color printing software is as below:
Printing Ink
SP-9800 multi-colored wide format inkjet printing system uses high-quality UV inkjet printing ink. At present, there are many kinds of UV ink in the market. According to different substrate application, it can be divided into UV paper ink, UV plastic ink, UV metal ink and so on. UV ink does not include volatile organic solvents. UV ink sprays fast and dries fast, with ultra-low viscosity and non-irritating odor. There is no blocking of nozzle phenomenon in jetting process. UV ink is suitable for printing on paper, metal, glass, ceramics, PC, PVC, PET, OPP, ABS, etc. It has high hardness, high adhesion, scrubbing resistance, solvent resistance and high gloss after curing.
AROJET model SP-9800 uses 4 color CMYK UV ink， it can print both multiple color and single color, provides multi-choice solutions for customers business innovation.
※ Eco-friendly. The ink test result conforms to RoHS standard.
※ Outstanding printing adaptability.
