Company Advantages1. Arojet industrial inkjet marking follows the measures and procedures of production. The product ensures stable and reliable performance
2. industrial inkjet is made up of superior raw material to achieve quality assurance. It is guaranteed with a superb crosswise and lengthways printing precision
3. The product is extremely durable. Every single panel is welded with a welded aluminum frame and the internal structure is made of steel mechanism. The product adopts a unique and modern design
4. It offers water penetration resistance. This level of water resistance is determined by the specifier based on one of the classes in BS EN 12154:2000 Curtain Walling, Watertightness, Performance Requirements and Classification. The product is praised for its anti-chemical resistance
5. It demonstrates good isolation of body movements. The sleepers do not disturb each other because the material used absorbs the movements perfectly. The product is known for its easy installation and assembly

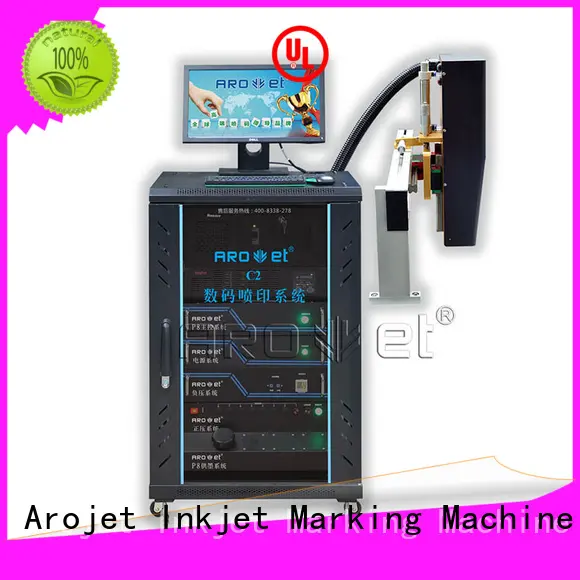

C2 is AROJET model of medium-speed roll or sheet variable data inkjet printing machine, with the printing speed up to 45m/min. 72mm of printhead width makes it suitable for wide-format printing, and a large versatile, cost-reasonable UV inkjet printing applications.
![Arojet c3 industrial inkjet inquire now for paper 11]()
UV inkjet technology means less pre-treatment material and less post-print coating work required compared to other printing technologies, such as flexography, gravure, screen printing and water-based inkjet printing. C2 model brings you both cost-effective and practical inkjet printing solutions.
◈ Medium-speed, wide-format.
◈ Industrial piezoelectric KONICA 1024 print head.
◈ Seamless stitching, perfect inkjet printing.
◈ Sheet-fed, roll to roll.
◈ Self-designed printing software, streamlined workflow.
◈ Easy operation and simple maintenance.
![Arojet c3 industrial inkjet inquire now for paper 13]()
Model: | C2 | Printing software: | MagicData variable data-editing software |
Print head type: | Industrial piezoelectric print head (KONICA) | SDK: | Provide interface to support second development |
Print head life: | 100 billion actuations per print head | Ink control: | Negative pressure for ink control, positive pressure for nozzle cleaning |
Print head material: | Stainless steel, Nickel alloys & Epoxy adhesive | Ink type: | High-quality Eco-friendly UV ink |
Print head width: | 72mm (single print head) | Ink color | Single color |
Nozzle quantity: | 1024 pcs (single print head) | Curing type: | UV-LED curing |
Nozzle rows: | 2 rows | Printing speed: | 0-45m/min. (Affected by material, resolution, environment, platform etc. factors) |
Printing modules: | 8 groups | Lengthways printing precision: | 360dpi |
Max. width of printing: | 576mm | Crosswise printing precision: | 200dpi-1200dpi adjustable |
Distance from print head to material: | 0.5mm-2mm | Weight: | 270KG |
Material feeding way: | Single piece, roll to roll | Size: | 1.39m*0.83m*1.50m (print head case+curing case) |
Power supply: | AC 100V-240V, 50Hz-60Hz | Working temperature: | 5°C-40°C |
Interface type: | USB 2.0 | Environment humidity: | 20%-65% RH |
● Can be installed online in the platforms as below:
◇ Single sheet or roll to roll feeding platform
◇ Polishing & laminating equipment
◇ Bottle cap machine
◇ Paging machine
◇ Labeling machine
● Can be applied to a wide range of industries as below:
◇ Printing industry for One-dimensional code, two-dimensional Code, identification code, etc.
◇ Paper, film, card, board
◇ Printing iron, glass, ceramics
◇ Food, beverage and wine
◇ Medicine, drug and health care product
◇ Hardware, electronics, daily chemicals, building materials
C2 AROJET model uses KONICA piezoelectric 1024 print head. 72mm wide-format printing greatly increases the production efficiency. Fully enclosed water-proof and anti-aging print head has long service life. The print head can print up to 8 kinds of ink droplets with minimum 6pl and maximum 50pl, which has better control over the printed images, reproduce smooth color progressively and accurate match tones. High printing resolution can be achieved. When the printing speed is 30m/min. the resolution reaches 360*300dpi.
The print head for C2 model can be compact installed to improve the printing quality. With its distinctive features of medium speed and wide format, C2 model can satisfy customers from many industries with various data inkjet coding and marking demands.
![Arojet c3 industrial inkjet inquire now for paper 16]()
The MagicData software used in C2 model has gained self-design copyright with strong functions. It can be tailor-made according to customer requirements to satisfy customer versatile demands.
※ Create main interface with intuitive preview
※ Support to load data source file
※ Combine and separate
※ Template management
※ Flexible layout design tools
![Arojet c3 industrial inkjet inquire now for paper 17]()
AROJET C2 model uses UV curing ink. UV curing is widely adopted in inkjet printing industry. UV curing ink has three major characteristics: energy-saving drying, extensive printing adaptability for printing materials, high-speed curing can shorten the follow-up processing time. The fourth characteristic of UV curing on inkjet printing is digital processing.
With the continuously improvement of the manufacturing and control technology of the inkjet printing, UV printing can meet diversified demands. In addition, UV ink does not include organic solvents, and is completely harmless to both human health and environment. UV ink is becoming more and more popular with many customers.
※ Inkjet printability
※ Anti-scratch, friction resistance and anti-corrosive
※ Hazardous substance content conforms to RoHS standard.
Company Features1. Guangdong AROJET Ink Jet Technology Co., Ltd. is a worldwide leading provider of industrial inkjet and services that brings value to its clients. Most of Guangdong AROJET Ink Jet Technology Co., Ltd.'s R&D efforts are focused on digital inkjet printing technologies.
2. With the realization of developing industrial inkjet marking ,Arojet has successfully produced label inkjet printer which gained high comments.
3. Guangdong AROJET Ink Jet Technology Co., Ltd. has an independent product development center. Guangdong AROJET Ink Jet Technology Co., Ltd. delivers innovative
industrial inkjet printer solutions that bring our clients’ visions to life. Inquire online!
