Arojet Brand multicolored middlespeed custom industrial inkjet coding printer
- Arojet has a highly educated and professional technical team. Our team members provide related technical support according to production demand, so as to promote the production of quality products.
- Arojet adheres to the service principle that we value honesty and always put quality first. Our goal is to create high-quality services to meet customers' different needs.
- Arojet will insist on the business philosophy of 'quality creates the brand, technology makes benefits'. We promote the enterprise spirit of 'pragmatism, progress, and innovation'. We strive to build a first-class brand and continuously provide high-quality products and services.
- In the past years, Arojet has been focusing on the R&D and manufacturing of machinery. Our machinery gains the trust and recognition for high cost performance, good quality, and favorable price.
- Arojet has won a large number of domestic and foreign loyal customers for a good reputation, high-quality products, and excellent service.
1. Our design for UV inkjet marking machine is very fashionable and special. It is highly automatic and requires little manpower
2. [核心关键词 has the characteristics of industrial inkjet coding printer and long life, it may bring social benefits. The product covers a wide range of functions
3. Guangdong AROJET Ink Jet Technology Co., Ltd. has perfect inkjet printing machine management system for coding printer. The product is the fruit of continuous innovation and improvement
4. In Guangdong AROJET Ink Jet Technology Co., Ltd., our specialist will estimate your needs, identify potential problems and recommend a cost-effective solution. The specific operation instruction is offered for the product
Product Oerview

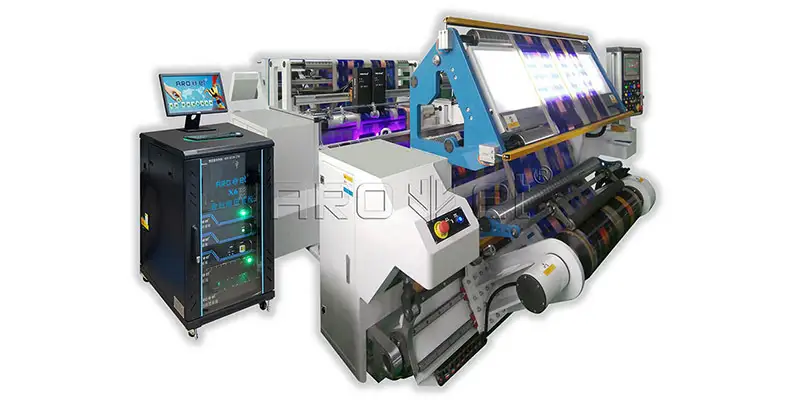

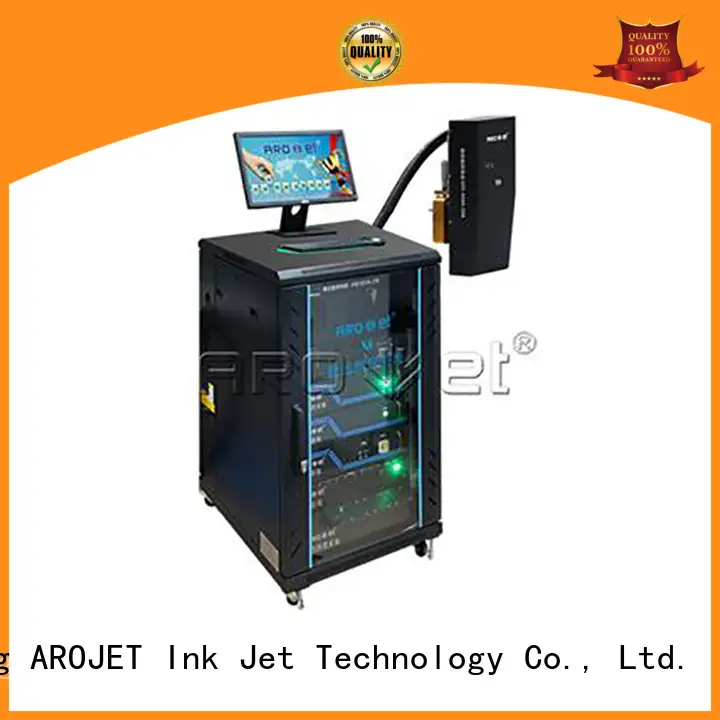

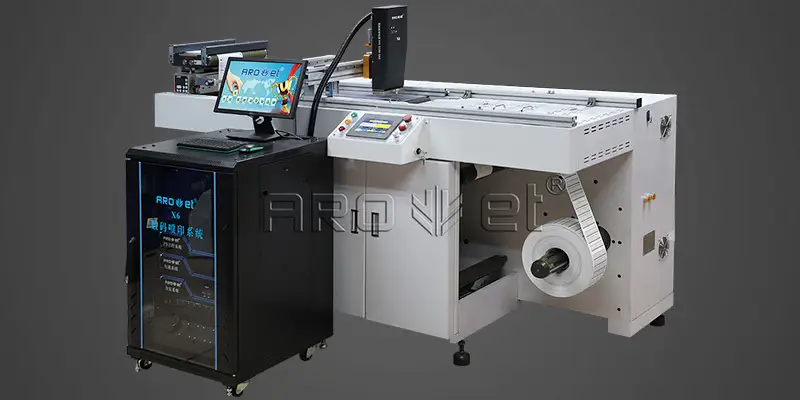

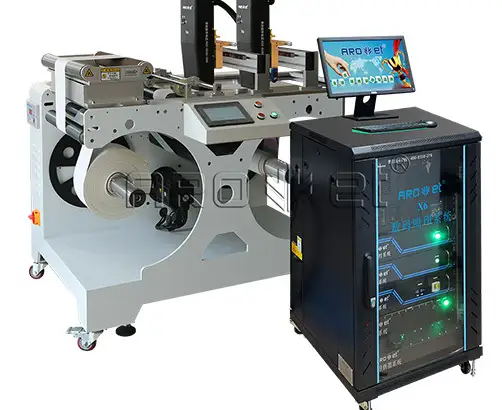

AROJET X6 high-speed variable data UV digital printing machine, is suitable for roll to roll printing and printing of flexible packaging. Its nozzle frequency is 50KHZ with printing speed up to 300m/min. The printing qualified rate can be up to 99.9% with high definition and high precision.
The patented-designed printing data algorithm improves the nozzle efficiency. The ink data optimization algorithm can reduce the ink loss, save production costs. Precise and seamless printing stitching makes printing effect more perfect. Integrated board and modular structure designs make modules expanding more convenient and maintenance simpler.
Highlighting speed and highlighting quality, X6 brings more efficient and quality production for customers.
● Environmental-friendly
● Wide compatibility
Product Features
◈ High-speed printing with printing speed up to 300m/min.
◈ Keeping printing blackness.
◈ Resolution:600x300dpi,speed:300m/min.
◈ Resolution:600x400dpi,speed:240m/min.
◈ Resolution:600x600dpi,speed:200m/min.
◈ Resolution:600x800dpi,speed:160m/min.
◈ Resolution:600x1200dpi,speed:100m/min.
◈ The nozzle has high utilization rate and low ink loss.
◈ High printing definition and precision, perfect printing effect
◈ Gigabit network data transmission. Transmission efficiency is high and more stable.
◈ High-intensity heating of UV-LED lamp makes the ink fast curing and drying.
◈ Negative pressure for ink control and positive pressure for nozzle cleaning， make the ink jetting smoothly, the ink road unblock and easy to clean.
◈ Integrated modular board and structure designs for convenient module expansion and simple maintenance.
Product Specifications
Model | X6 | Printing software | MagicData variable data-editing software |
Printhead type | Industrial piezoelectric printhead (RICOH) | SDK | Provide interface to support second development |
Printhead life | 100 billion actuations per printhead | Ink control | Negative pressure for ink control, positive pressure for nozzle cleaning |
Printhead material | Stainless steel, Nickel alloys & Epoxy adhesive | Ink type | High-quality Eco-friendly UV ink |
Printhead width | 50mm (single printhead) | Ink color | Single colors |
Nozzle rows | 4 rows | Curing type | UV-LED curing |
Printing modules | 8 groups | Printing speed | 0-300m/min (Affected by material, resolution, environment, platform etc. factors) |
Max. width of printing | 400mm | Lengthways printing precision | 600dpi |
Distance from printhead to material | 0.5mm-2mm | Crosswise printing precision | 200dpi-1200dpi adjustable |
Material feeding way | Single piece, roll to roll | Weight: | 270KG |
Power supply | AC 100V-240V, 50Hz-60Hz | Size | 1.39m*0.83m*1.50m (printhead case+curing case) |
Interface type | USB 3.0 or Gigabit LAN | Working temperature | 5°C-40°C |
Environment humidity | 20%-65% RH |
Product Videos
Product Applications
◇ High-speed full rotary label printing machine
◇ Automatic inspection machine
◇ High-speed slicing slitting machine
◇ High-speed flexographic press
◇ High-speed gravure press
◇ Polishing and coating machine
◇ Paging machine
◇ Film, flexible packaging
◇ Label, plastic
◇ QR code, barcode, drug regulatory code
◇ Textile and clothing
◇ Electronics and hardware
◇ Food and beverage
◇ Medicines and health products

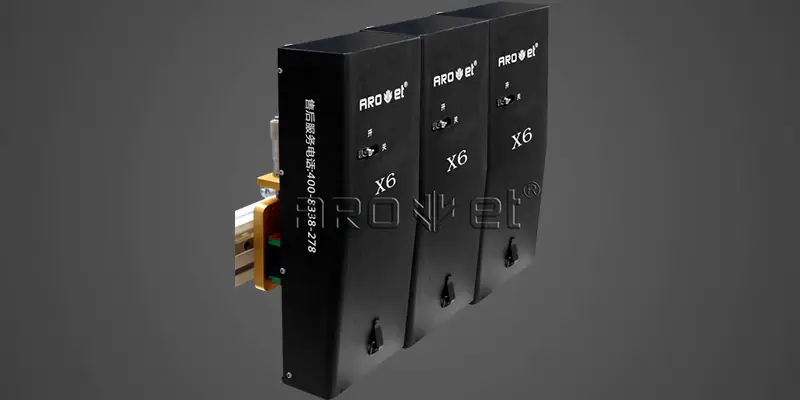

Print Head
X6 high-speed industrial digital inkjet printer, is equipped with high-quality piezoelectric print head using Japan RICOH print head which has long service life. It has stable printing effect with high precision and high definition.
X6 features high-speed printing with printing speed up to 300m/min. At 600*600dpi high resolution the printing speed can reach 200m/min. It uses negative pressure for ink control which ensure the nozzle unblocked. The positive pressure cleaning makes the daily maintenance much easier.
X6 patent-designed print head has higher utilization rate and lower ink loss. It can satisfy customers for high-quality and high-efficiency production requirements.

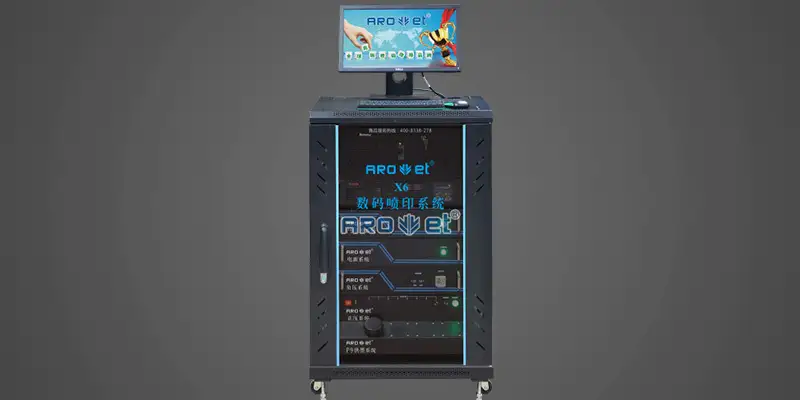

Printing Software
AROJET patent-designed MagicData printing software is applied to model X6 high-speed single-color variable data inkjet printing. It supports a lot of content formats, such as variable data graphics BMP format, barcode, QR code text format (Chinese characters, English characters, numbers, special symbols), regulatory code, anti-counterfeit code, graphical text, etc. MagicData’s features include template management, layout design,parameter adjustment, data merging and splitting, output preview, record queries, template modification, etc.
MagicData software for X6 simplifies and streamlines a wide range of printing applications, such as label, flexible packaging, plastic, film, QR code, barcode, etc. It can satisfy different customers with different requirements.

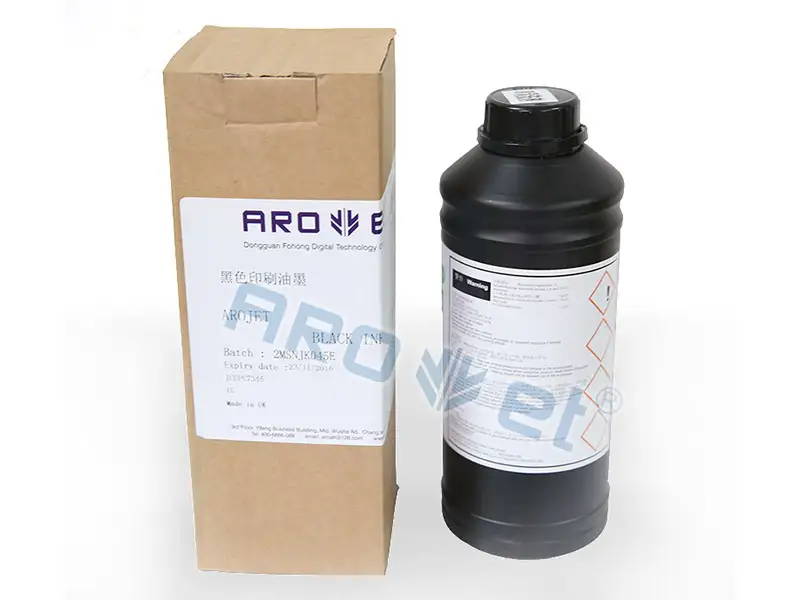

Printing Ink
AROJET industrial inkjet printer uses several kinds of UV ink which feature solvent-free, fast drying, good glossy, water-resistant, solvent-resistant and good wear-resistance. UV ink has now become a more mature ink technology. Its pollution emissions are almost zero with no any harm to human health.
X6 uses single color UV ink, different materials use different ink to meet customer different requirements.
※ UV ink does not block the mesh holes, suitable for fine products printing.
※ UV ink is instant drying, highly improving the production efficiency.
※ UV ink is non-poisonous and Eco-friendly.
Company Features
1. Guangdong AROJET Ink Jet Technology Co., Ltd. is known for producing top-quality crafts UV inkjet marking machine.
2. Arojet has a complete product manufacturing and processing system.
3. Guangdong AROJET Ink Jet Technology Co., Ltd. adheres to the service tenet of serving customers wholeheartedly. Inquire!
