Company Advantages1. Each ingredient of
Arojet is rigorously evaluated for safety by adopting the latest science regulations. Only those ingredients that meet exceedingly standards in the beauty makeup industry would be used. The product is known for its easy installation and assembly
2. There is a multitude of benefits when manufacturers use this product to upgrade production, such as increased productivity and lowered labor costs. The product ensures stable and reliable performance
3. This product has the required safety. It can perform tasks in a dangerous environment that humans cannot operate. The product can process items in a large quantity
4. The product is not prone to corrode. Its surface has been treated with powder-coated finish which offers extra protection against oxidization. It can run at a very high speed
5. The product is strongly resistant to get rusty. It has an oxide protective layer which allows it to stand up the damage of wet environments. It is highly automatic and requires little manpower

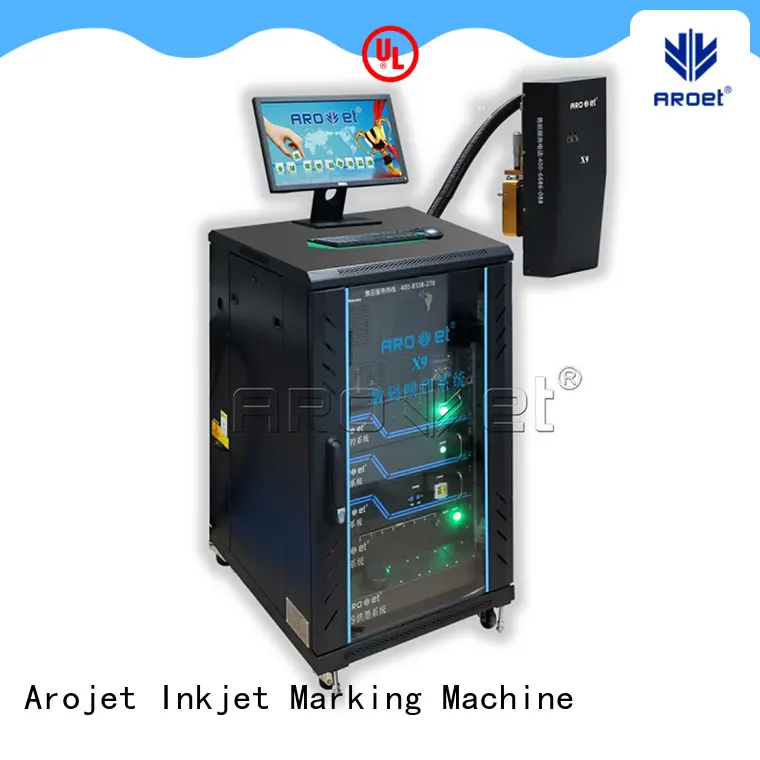

X9 model, AROJET latest ultra-high speed industrial digital variable data UV inkjet printing system, was designed and developed
using state-of-art high technology. It is suitable for the roll to roll printing of flexible packaging, label, plastic, film, etc. The printing speed can reach 350m/min.
With the printing resolution up to 1200*1200dpi and qualified scanning rate up to 99.9%. It can be applied to the inkjet printing of variable QR code, barcode, serial No, date code, variable image, character and number in a variety of industries.
![Arojet arojet inkjet printing machine date for film 11]()
With the accurate negative pressure ink control and constant ink heating technology, X9 inkjet system keeps smooth and non-blocking ink road, to ensure the high definition and high precision, and to satisfy customers with high efficiency and high quality inkjet printing solutions.
◈ Ultra-high speed printing with high quality.
◈ Resolution: 600*600dpi, speed: 200m/min.
◈ Resolution: 600*450dpi, speed: 280m/min.
◈ Resolution: 600*400dpi, speed: 300m/min.
◈ RICOH customized print head, with long service life.
◈ 24*7 hours running without interruption to realize high-efficient production.
◈ Software template technology, with seamless printing. Stitching error no less than 0.5mm .
◈ The minimum character height printed is 1mm.
◈ Equipped with AROJET self-developed UV-LED curing water-cooling system, to achieve instantly fast drying and reduction of the post-processing time.
◈ Can both be installed in customer’s production line and be self-equipped platform
![Arojet arojet inkjet printing machine date for film 13]()
Model: | X9 | Printing software: | MagicData variable data-editing software |
Print head type: | Industrial piezoelectric print head ( RICOH) | SDK: | Provide interface to support second development |
Print head life: | 100 billion actuations per print head | Ink control: | Negative pressure for ink control, positive pressure for nozzle cleaning |
Print head material: | Stainless steel, Nickel alloys & Epoxy adhesive | Ink type: | High-quality Eco-friendly UV ink |
Print head width: | 54mm (single print head) | Ink color | Multiple color |
Nozzle rows: | 8 rows | Curing type: | UV-LED curing |
Printing modules: | 8 groups (can be customized up to 100 modules) | Printing speed: | 0-350m/min. (Affected by material, resolution, environment, platform etc. factors) |
Max. width of printing: | 432mm | Lengthways printing precision: | 1200dpi |
Distance from print head to material: | 0.5mm-2mm | Crosswise printing precision: | 200dpi-1200dpi adjustable |
Material feeding way: | Single piece, roll to roll | Weight: | 270KG |
Power supply: | AC 100V-240V, 50Hz-60Hz | Size: | 1.39m*0.83m*1.50m (print head case+curing case) |
Interface type: | USB 3.0 or Gigabit LAN | Working temperature: | 5°C-40°C |
| | Environment humidity: | 20%-65% RH. |
● Can be installed online in the platforms as below:
◇ High-speed flexographic press
◇ High-speed full rotary label printing machine
◇ High-speed gravure press
◇ Automatic inspection machine
◇ High-speed slicing & slitting machine
◇ Varnishing and laminating machine
◇ Paging machine
● Can be applied to a wide range of industries as below:
◇ Label, flexible packaging
◇ Film & plastics, including PVC, PET, OPP, BOPP, etc.
◇ Two-dimension code, barcode, serial No., date code, etc.
◇ Textile and clothing
◇ Electronics, hardware and daily chemicals.
◇ Food, beverage and wine
◇ Medicine, drug and health product
Ultra-speed X9 model uses customized RICOH industrial piezoelectric printhead, which is in all stainless steel material. It is wear-resistant and corrosion-resistant and has long service life. The printhead adopts advanced variable ink droplet technology, with the ink droplet range of 7pl, 14pl and 21pl.
The strong nozzle compensation function makes the output image more accurate, more hierarchical and more uniform. Variable single and double rows can be printed quickly or slowly.
With the intelligent white skipping function, X9 RICOH printhead can identify the blank area automatically, saving ink and improving production efficiency. The automatic flash function keeps the nozzles in good working condition, and makes the machine achieve high efficient and high quality production.
![Arojet arojet inkjet printing machine date for film 16]()
MagicData software is used for AROJET series inkjet printer. It offers user-friendly interface to interactively control the printer, monitor printer status and set printer options.
※ Easy to monitor and control printer and job status with instant feedback.
※ Support multiple print modes management.
※ Directly add job to printer and set job properties.
※ Precise compensation algorithm for printhead physical position error.
※ UV-LED lamp setting.
※ Support the third party RIP software.
![Arojet arojet inkjet printing machine date for film 17]()
X9 ultra-high speed inkjet printing machine uses new type of UV ink. Compared with ordinary ink, UV ink has a great improvement in printing adaptability and printing quality. As UV ink is 100% solid substance, no volatile solvent included, the ink adhesion will not change with the change of environment conditions, therefore the quality is exactly the same. Instant drying after printing keeps the products clean and save time and energy. UV ink has become a mature ink technology. It is applied to many industries for inkjet printing, providing enterprises with new business development directions.
UV ink has become a mature ink technology. It is applied to many industries for inkjet printing, providing enterprises with new business development directions.
※ No VOC substance involved, 100% environmental-friendly.
※ Fast curing, wear-resistance, corrosion-resistance.
※ No hurt to printing substrate.
Company Features1. Guangdong AROJET Ink Jet Technology Co., Ltd. has been providing high quality over the years. We have earned a good reputation among many competitors based in China. As a core value of Arojet, the position of inkjet printing machine manufacture technology has been highly valued.
2. Produced by the most advanced technology, Arojet is proud to have this high quality industrial inkjet printing .
3. Guangdong AROJET Ink Jet Technology Co., Ltd. is especially technologically leading. Making best inkjet printing machine is our common pursuit and ideals. Inquire online!
